20ft Shipping Container Chassis
20 foot Shipping Container Chassis For Sale
20FT Container Chassis Trailer
SPECIAL HAULING REQUIREMENTS? JUST ASK!
WE can work with you to design a chassis to meet your specific needs.

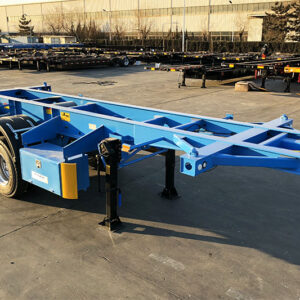

20Ft Shipping Container Chassis
Long Beach Off-Coast Depot offers 20ft foot container chassis for sale. They consist of a number of forms like flushback container chassis, straight frame tandem axle chassis, tri-axle slider chassis, drop frame chassis, single axle chassis, pull chassis or trailer, double-drop chassis and tipping container chassis.
Buy 20 foot Slider Chassis Online
Buy 20 foot Slider Shipping Chassis Online

IN STOCK (87)

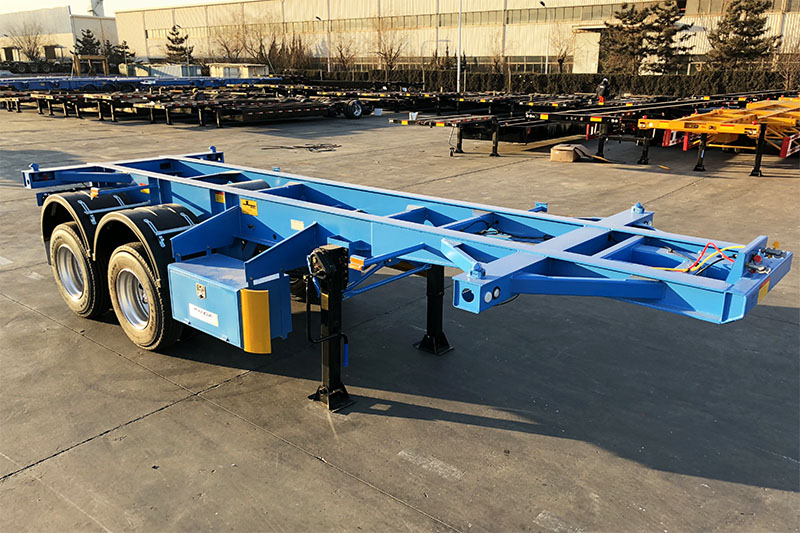

20Ft Chassis for Sale
You can buy 20ft shipping container chassis suitable for the transportation of specific weights of cargo loaded in a variety of 20 foot containers.

20ft Shipping Container Chassis Dimensions:

Length:
24’ and above

Width:
96”

King pin location:
18” from the front of chassis.

Coupler height:
48”

Tare weight:
3,200kg (approximately)

20ft Shipping Container Chassis Usability:
These intermodal chassis are ideal for transferring shipping containers from trucks to ports and warehouses. Buy 20ft shipping container chassis designed to accommodate our 20ft containers that can support even the heaviest cargo.
Buy 20 foot Chassis Trailer Online
Buy 20 foot Chassis semi-trailer Online

Made from very durable materials but designed to be as light as possible to not add to the cargo’s weight.
Equipped with spring suspensions to eliminate excessive road vibrations from reaching and damaging your cargo.
Using low-profile tires, we can put on larger rims and wheels to support the heaviest loads.
The ABS (Anti-Lock Braking) system monitors the trailer’s air brakes to prevent tire lock-up when used.
Designed to keep shipping containers firmly fastened to prevent movement during transport.
These drop frame chassis have a low center of gravity to reduce rollover and provide maximum stability when transporting liquid payloads.

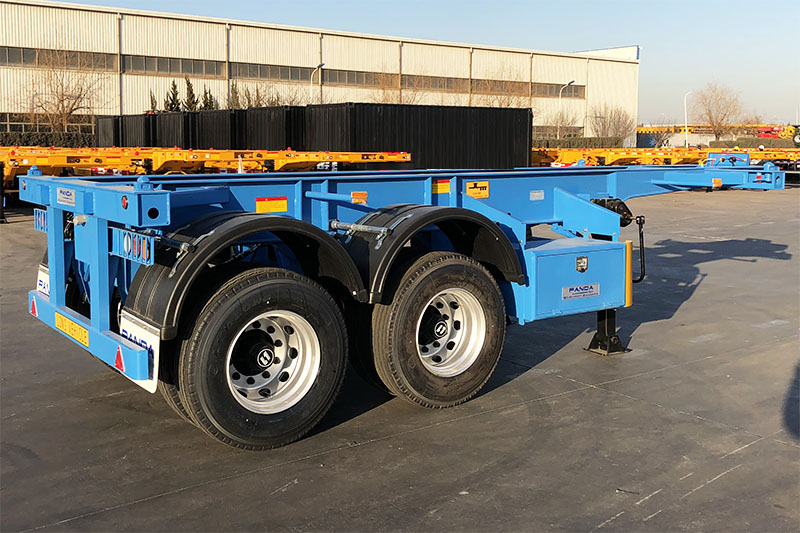

 20FT Container Chassis semi-trailer For Sale
 20Ft Slider Container Chassis For Sale
 20Ft Slider Shipping Container Chassis For Sale
Container chassis are available in a variety of types, but the one you choose will depend heavily on your needs, budget, and shipping requirements. Such chassis can accommodate many different weight loads, as well as container sizes and types (including specialized containers). The chassis plays an important role, as it connects and carries the weight of cargo between modes of transport.

Long Beach Off-coast Port offers a variety of used chassis for sale to fit every containerized load. Our used intermodal container chassis are available in major depots in North America.
 20FT Container Chassis Trailer For Sale
 20FT Shipping Container Chassis Trailer For Sale
Standard 20′ Container Chassis
Our chassis are well-maintained to meet Federally and locally mandated roadability laws. Our chassis were manufactured to provide high-reliability and feature components such as sealed beam LED lighting, extra-heavy-duty landing gear, specially coated brake shoes, and locking mechanisms that better withstand damage.



While in service, chassis were maintained and repaired under the supervision of our depot and pool technical staff to assure our customers of safe and reliable service. Chassis come in sizes tailored to the containers they carry, with some chassis being adjustable for different containers.

20ft Shipping Container Chassis For Sale
 20ft Container Chassis For Sale
Chassis come in various sizes and configurations. We have some of the more popular sizes for sale in most ports. Some rental chassis are available on a limited basis in Tampa and Long Beach, and other locations soon.

 20ft Shipping Container Chassis
 20ft Container Chassis

Container Chassis is designed and built ccording to the Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
 20Ft Slider Container Chassis
 20Ft Slider Shipping Container Chassis
The container chassis frame and main fabricated parts are made from high strength low alloy steel ASTM A572 Grade 50, having a minimum yield point of 50,000 PSI or higher. Some of the standard components include 10×20 tires on 5-spoke wheels, spring suspension, an antilock braking system (ABS), and two-speed landing legs. Lots of available upgrades from radials and air rides to paint color. Chassis can be stacked for power-only transport

20Ftri-axle chassis trailer
Common Container Chassis Trailers come in

20ft Chassis
20-40ft Flip up 12-pin Chassis
40ft Chassis Length 40′ 10″
40ft Slider Chassis 40-45ft
53ft Chassis *some limited access
20-40 Tri-Axle City Combo Chassis

20 ft Container Chassis

Maximum Loaded Weight 29.500 kg
Net Weight (approx.) 2.820 kg
Payload (approx.) 26.680 kg
Brakes Wabco ABS 2S / 2M – Double circuit brake system according to EC
Axles SAF – 2 x 9-ton axles with air suspension. Drum brakes.
Tres 4 x 385/65 R 22.5
Electrical System 2 x 7 15 Pin Sockets
Landing Gear 24 Ton Mechanical Landing Gear
Rear Under-run Protection Device Steel type rear under-run protection device according to EEC.
Chassis Made of high tensile steel.
4 Container Locks – Twist lock type
Accessories Side underrun protection according to EC Directives; wheel chocks and holders, rear ramp buffers, half type mudguards, toolbox, spare wheel carrier
Color Chassis: RAL 9005 Black

 20FT Container Chassis semi-trailer
20′ Container chassis

 chassis are utilized within the shipping and railroad industries to bring containers to and from railroads and ports to the end customer. They can transport containers from trucks between ports, terminals, and warehouses, acting as critical support in the supply chain.
They are comprised of a steel frame with tires and axle systems, brakes, suspension systems, and lighting, as well as add-ons such as GPS, LED lighting, weight sensors, and more.


20FT Container Chassis Trailer
 20FT Shipping Container Chassis Trailer
20Ft Chassis Trailers for Sale in excellent conditions

20Ft Chassis Trailers for Sale in excellent conditions

Buy 20Ft Slider Container Chassis For Sale
Buy 20Ft Slider Shipping Container Chassis For Sale
Standard chassis can haul standard containers of 20ft to 40ft with two axles. You will need a tri-axle chassis if you intend to transport 20ft containers weighing more than 36,000 pounds or 40ft containers weighing more than 44,000 pounds.
20 Foot Slider Container Chassis

Straight frame tandem axle chassis designed for the stevedoring and transportation of one ISO 20 foot container weighing up to an estimated 45,000 lb. Slider positioning achieved by means of lock pin assembly that allows slider to index through holes in the frame rails. In the closed position, the chassis is ready for loading/unloading operations while in the extended, the chassis is set for road transport.  The overall lengths are: 23 foot 6 inches and 27 foot 6 inches respectively.

Buy 20FT Shipping Container Chassis Trailer For Sale
Buy 20FT Container Chassis semi-trailer For Sale
Chassis is designed and built according to Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.

Buy 20ft Container Chassis For Sale
Buy 20FT Container Chassis Trailer For Sale
The container chassis frame and main fabricated parts are made from high strength low alloy steel ASTM A572 Grade 50, having a minimum yield point of 50,000 PSI or higher.  Some of the standard components include 10×20 tires on 5 spoke wheels, spring suspension, antilock brake system (ABS), and two-speed landing legs.  Lots of available upgrades from radials and air rides to paint color.
Buy 20ft Shipping Container Chassis For Sale

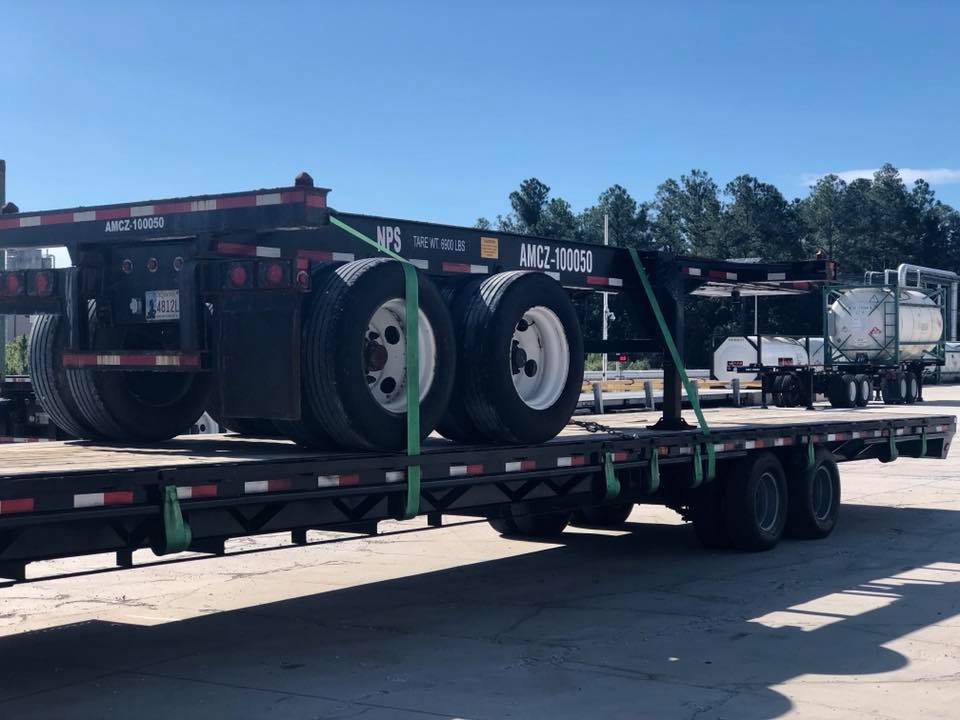

Chassis can be stacked up to 5 high for power only transport

20 Foot Slider Specifications

Overall Length:
23’-6” Retracted ; 27-6” Extended

Overall Width:
96”

King Pin Location:
18” from front of chassis

Coupler Height:
48”

Tare Weight:
6,600 lbs

Main Rails:
Two hot rolled structural steel, ASTM-A572 Grade 50 “I” beams. Wide flange 12” in depth 19 lbs/ft.

Landing Gear:
Two-speed mechanism and square leg tubing with 10” x 10” low profile sand shoes

Suspension:
Hutch with Three Leaf Springs (11,000 lb capacity each)

Axles:
Two axles of 5” round and 22,500 lb beam capacity each; 16.5 x 7-inch Q brakes; automatic type slack adjusters

Brake System:
Meritor Wabco 2S/1M Anti-lock Braking System; 30/30 Spring brake chambers

Tires / Wheels
10.00 x 20 tires on 5 spoke wheels

Electrical:
12 Volt with plug type connectors, 7-way plug, sealed wire harnesses and lights

Twist Locks:
Cast steel to engage ISO corner castings

Paint:
Commercial sandblast, primer, and high quality paint system

Other:
Conspicuity Tape, Bumper, 24 x 30 Mud Flaps

Buy 20 foot Slider Container Chassis Online
Buy 20 foot Slider Shipping Container Chassis Online

Long Beach Off-coast Port was built on designing and manufacturing the lightest, strongest, and most durable Container Chassis in the industry. With hundreds of different models, our container chassis are designed to haul a variety of sizes including but not limited to 8′, 10′, 12′, 20′, 40′, 45′, 48′, and 53′.
Long Beach Off-coast Port also offers hydraulic tippers that can tip up to 45 degrees. We offer tandem axle, widespread, tri-axle and low deck models with a variety of options.

Long Beach Off-coast Port uses a specially engineered steel frame to reduce tire weight, increase payload, and lower operation maintenance. When producing your Container Chassis, Long Beach Off-coast Port uses the most advanced laser and plasma equipment available as well as the latest techniques in jigs and fixtures.
Buy 20 foot Shipping Container Chassis Trailer Online
Buy 20 foot Container Chassis semi-trailer Online
Tank Chassis
Long Beach Off-coast Port is known as the leading supplier of tank chassis over any other manufacturer in the intermodal industry. Over forty-five major bulk carriers and shippers utilize Long Beach Off-coast Port’s ISO tank chassis. The Long Beach Off-coast Port drop frame chassis is designed for low deck heights and higher stability.
Long Beach Off-coast Port has a variety of Tank Chassis available in various configurations including but not limited to the tandem axle, tri-axle, spread axle, and closed tandem designs. Long Beach Off-coast Port also offers the ability to transport two 20′ ISO Tank Chassis on our Hi-Lo models.

Models

GN2040EZ

41′ Triaxle Combo Container Chassis to handle 20ft or 40ft Containers

DC432LS9

43′ DC-Model 9′ spread spring ride for 20′ ISO Containers

D3141

Tri-axle slider for heavy 20′ high cube container

GN4553-HD

45-53 GN 4-axle spring suspension chassis

2040EZH

40′ hydraulic triaxle tipper chassis with 43 deg. tilt angle for 20′ containers

CC3040EZ

Tri-Axle Container Chassis To Handle 20ft ISO Container

CC242

24′ tandem axle spring ride straight frame chassis

CC243

container chassis to handle 20′ ISO containers

DC403L

40′ tri-axle lightweight drop-frame chassis

GN2040S9A

45′ spread axle air ride combo chassis

GN402

40’ container chassis

GN412L

Lightweight 40’ container chassis

We are working to add more products to our site regularly. Long Beach Off-coast has thousands of different active models of transportation equipment to meet your requirements. Please check back often as we complete the process of adding more products.
Please feel free to contact us so we can discuss what your requirements are and which model would best fit your specific applications.
Buy 20 foot Container Chassis Online
Buy 20 foot Container Chassis Trailer Online

Reasons to Buy Container Chassis
Here are the many reasons why it’s a good idea to invest in a container chassis.
1.     Seamless, Secure Shipping
Containers securely attach to the chassis to ensure no movement or damage will occur. Safer transport is the name of the game!
2.     Durability
While made from lightweight materials, chassis are durable and strong enough to handle the heaviest of freight.
3.     Versatility
You are able to choose from many options based on your shipping preferences, needs, and budget.
4.     Timely Delivery
Container chassis can accommodate many containers in one trip, avoiding extra delivery charges and a tighter delivery window. This ensures a cost-effective option.
5.     Ensures Customer Satisfaction
If your customers are happy with a more cost-effective, timely delivery method, then you are happy! To ensure a greater customer satisfaction rating, rely on high-quality container chassis.
Types of Container Chassis
There are many different types of container chassis, including:

20ft Container Chassis
45ft Container Chassis
48ft to 53ft Domestic Container Chassis
Two-axle Chassis (Common)
Three-axle
Four-axle
Five-axle
Gooseneck Chassis
Extendable
Combo
Heavy-duty
Lightweight
Rear B-Train
Straight Frame
Flatbed Container Trailer

Factors in Choosing the Right Chassis
There are many things to take into consideration before you choose a chassis, such as:

Industry-specific usage and requirements
Number of axles and weight threshold
Incurred costs

Straight frame tandem axle chassis designed for the stevedoring and transportation of one ISO 20-foot container weighing up to an estimated 45,000 lb. Slider positioning is achieved by means of a lock pin assembly that allows the slider to index through holes in the frame rails.
In the closed position, the chassis is ready for loading/unloading operations while in the extended, the chassis is set for road transport.  The overall lengths are 23 feet 6 inches and 27 feet 6 inches respectively.

Buy 20 foot Shipping Container Chassis Online
The chassis is designed and built according to the Association of American Railroads (AAR), Federal Motor Vehicle Safety Standards (FMVSS), International Standards Organization (ISO), American National Standards Institute (ANSI), Department of Transportation (DOT), American Bureau of Shipping (ABS), Society of Automotive Engineers (SAE), and Truck Trailer Manufacturers Association (TTMA) standards.
Buy 20 foot Slider Shipping Container Chassis For Sale
The container chassis frame and main fabricated parts are made from high strength low alloy steel ASTM A572 Grade 50, having a minimum yield point of 50,000 PSI or higher.  Some of the standard components include 10×20 tires on 5-spoke wheels, spring suspension, an antilock brake system (ABS), and two-speed landing legs.  Lots of available upgrades from radials and air rides to paint color.
Chassis can be stacked up to 5 high for power-only transport
Buy 20 foot Slider Container Chassis For Sale
Contact Tropical Trailer Leasing
If you have additional questions about container chassis, or you would like to rent, buy or lease a storage trailer, contact us today for a free quote. Our company can meet your exact needs, whether you need one unit or hundreds,
 unique in our scope of products and services.
In addition to standard, specialized and fabricated container structures we sell and rent ISO Chassis.
The tri-Axle slider chassis has a heavy-duty steel frame with 3 axles. It is designed to carry high payloads 20-foot ISO containers up to 53,000 lbs.
The chassis can be stacked 3 high for transport.
 20 foot Slider Container Chassis For Sale
20 foot Slider Shipping Container Chassis For Sale

Availability can include New, Refurbished, Used, and Fix It Yourself conditions.
Domestic chassis will meet FHWA Roadworthy requirements.
Parts for Sale
Registration Services
Repairs Performed
We sell ISO container chassis for the safe and cost-effective transport of empty and loaded containers.
We can quote on New Tri-axles and Specialty Chassis.

What is a container chassis?
In simple terms, a container chassis or intermodal chassis is a wheeled structure designed to carry containers via trucks between terminals, warehouses, and ports. A chassis composes of a steel frame with tires and axle systems. It also includes suspension, brakes, and lighting mechanisms.
With the advancement of technology, newer models come with features such as ABS, weight sensors, LED lights, and GPS tracking systems. It’s an effortless way to carry or move shipping containers. They play a key role in making transportation easy and efficient.
20 foot Shipping Container Chassis Trailer For Sale
20 foot Container Chassis semi-trailer For Sale
A standard chassis transports standard ISO containers (20ft and 40ft) with two axles. Generally, a tri-axle chassis is needed to carry 20ft containers above the weight of 36,000 lbs or 40ft containers above 44,000 lbs.
You can choose different types and sizes of container chassis depending on your requirements.
Why do you need a container chassis?
Container chassis, the wheeled equipment, increases movement speed and efficiency. Chassis are designed in a way that they can separate from the truck to accommodate different kinds of containers easily. Let’s take a quick look at some of the reasons why you need a container chassis in your shipping process.
1. Smooth and secure shipping
Containers are securely attached to the chassis. It prevents unnecessary container movements – ensuring safer transportation.
2. Durability and easy transportation
They are usually made out of lightweight materials but are durable enough to hold heavy-load containers with ease.
3. Suits different shipping requirements
Container chassis come in different types. Companies can choose from a wide range of options based on their specific needs. You’ll read more about the types further down the blog.
4. Quick, cost-effective, and offers timely delivery
Container chassis can load several containers at the same time – making the process quick and efficient. This, in turn, fastens delivery and the risk of extra charges for your shipment due to untimely delivery is reduced.
5. Uplifts customer satisfaction
When you’re so quick, efficient, and safe in shipping the containers, it’s obvious that your customers are delighted. It improves reliability and the overall customer experience.
Even though container chassis help you become more efficient and on time, unexpected things do happen. Things, that can make the containers late – if they’re rolled, stuck at port, or even unloaded at the wrong port. Thus, it’s a good idea to get your hands on a SOC container
 20 foot Container Chassis Trailer For Sale
The most commonly used types of container chassis
There are 3 commonly used container chassis. These chassis make loading and unloading of containers easy. They’re also designed to adapt to the different sizes of containers. Take a look at these chassis.

Tilt container chassis
Tilt container chassis makes it easy to unload a container. There is an apparatus attached to the chassis with a pivot device to make loading and unloading simple. Unlike the conventional chassis, this one has upper and lower frames attached to it. There’s a hydraulic system on the upper frame that tilts upward.
 20 foot Container Chassis For Sale
You’ll also find a roller at the upper frame that connects to the lower frame of the chassis. This whole arrangement of the chassis makes the process of loading and unloading secure and easy to handle. A special design like this costs more money, but if convenience is what you choose, go for this one.
Extendable container chassis
Extendable, as the name suggests, this chassis type can adapt to any container size. It works similarly to a regular chassis but is extendable at the back. By doing so, bigger containers are mounted hassle-free. You can go for this type of chassis if you have varying container lengths to transport. Extendable chassis help you transport sealed containers across different countries and states without any hiccups.
20 foot Shipping Container Chassis For Sale
Tip: Remember that the length of the chassis should be greater than the size of the container. Place the load/container at the center to keep the trailer stable and balanced.
Common container chassis
This type of container chassis comes without any modification or sophistication. It’s a simple fixed structure to carry and transport containers from one place to another. Overhead cranes are used during the loading and unloading process. You can use a common container chassis to transport 20ft, 40ft, or 45ft containers.
These chassis have visibly-marked spots to help identify the position where the containers need to be placed securely. Common container chassis are affordable and pretty easy to use. However, you may end up paying extra for external equipment such as overhead cranes.

Different container chassis models in the market
Depending on your shipping requirements and, of course, the container size, there are several types of chassis available in the market. Let’s take a look at them.
20 foot Shipping Container Chassis For Sale
Chassis type by dimension

20ft container chassis
40ft – 45ft container chassis
48ft to 53ft domestic container chassis

Chassis type by purpose

Generator chassis
All chassis model
Tank chassis
Flatbed chassis

Chassis type by feature/design

Gooseneck chassis
Extendable chassis
Heavy-duty chassis
Lightweight chassis
Combo chassis
Rear B-train chassis
Straight frame chassis
Canadian Chassis

How to choose the right container chassis?
By now, you already have an idea about container chassis and the different types. But along with that, you must also know which container chassis is suitable for you. Choosing the ideal one largely depends on your requirements. Businesses can choose what’s best and most affordable for their daily operations.
Having an idea of how to choose a container chassis will help ensure that your containers go through a smooth loading and unloading process. It’ll also save you a few extra dollars. You can consider the following factors:
Usage and requirements (Industry-specific)
If you only need to transport containers, chassis modeled specifically for containers are the best. But, if you need to move other types of cargo, go for a flatbed container chassis trailer – as it serves a dual purpose. If you need to load/unload cargo at specific places, a tilt chassis is a great choice.
Number of axles/ weight threshold
You can choose the number of axles in the chassis depending on the cargo or container weight. Remember: the more the number of axles, the more load capacity it can hold. For daily usage, 2 or 3-axle chassis is your best choice.
Costs incurred
Consider your container specifications and requirements before choosing a chassis. Usually, a specialized chassis costs higher than the regular one.
What is a container chassis?
In simple terms, a container chassis or intermodal chassis is a wheeled structure designed to carry containers via trucks between terminals, warehouses, and ports. A chassis composes of a steel frame with tires and axle systems. It also includes suspension, brakes, and lighting mechanisms.
With the advancement of technology, newer models come with features such as ABS, weight sensors, LED lights, and GPS tracking systems. It’s an effortless way to carry or move shipping containers. They play a key role in making transportation easy and efficient.
A standard chassis transports standard ISO containers (20ft and 40ft) with two axles. Generally, a tri-axle chassis is needed to carry 20ft containers above the weight of 36,000 lbs or 40ft containers above 44,000 lbs.
You can choose different types and sizes of container chassis depending on your requirements.
Why do you need a container chassis?
Container chassis, the wheeled equipment, increases movement speed and efficiency. Chassis are designed in a way that they can separate from the truck to accommodate different kinds of containers easily. Let’s take a quick look at some of the reasons why you need a container chassis in your shipping process.
1. Smooth and secure shipping
Containers are securely attached to the chassis. It prevents unnecessary container movements – ensuring safer transportation.
2. Durability and easy transportation
They are usually made out of lightweight materials but are durable enough to hold heavy-load containers with ease.
3. Suits different shipping requirements
Container chassis come in different types. Companies can choose from a wide range of options based on their specific needs. You’ll read more about the types further down the blog.
4. Quick, cost-effective, and offers timely delivery
Container chassis can load several containers at the same time – making the process quick and efficient. This, in turn, fastens delivery and the risk of extra charges for your shipment due to untimely delivery is reduced.
5. Uplifts customer satisfaction
When you’re so quick, efficient, and safe in shipping the containers, it’s obvious that your customers are delighted. It improves reliability and the overall customer experience.
Even though container chassis help you become more efficient and on time, unexpected things do happen. Things, that can make the containers late – if they’re rolled, stuck at port, or even unloaded at the wrong port. Thus, it’s a good idea to get your hands on a SOC container
The most commonly used types of container chassis
There are 3 commonly used container chassis. These chassis make loading and unloading of containers easy. They’re also designed to adapt to the different sizes of containers. Take a look at these chassis.

Tilt container chassis
Tilt container chassis makes it easy to unload a container. There is an apparatus attached to the chassis with a pivot device to make loading and unloading simple. Unlike the conventional chassis, this one has upper and lower frames attached to it. There’s a hydraulic system on the upper frame that tilts upward.
You’ll also find a roller at the upper frame that connects to the lower frame of the chassis. This whole arrangement of the chassis makes the process of loading and unloading secure and easy to handle. A special design like this costs more money, but if convenience is what you choose, go for this one.
Extendable container chassis
Extendable, as the name suggests, this chassis type can adapt to any container size. It works similarly to a regular chassis but is extendable at the back. By doing so, bigger containers are mounted hassle-free. You can go for this type of chassis if you have varying container lengths to transport. Extendable chassis help you transport sealed containers across different countries and states without any hiccups.
Tip: Remember that the length of the chassis should be greater than the size of the container. Place the load/container at the center to keep the trailer stable and balanced.
Common container chassis
This type of container chassis comes without any modification or sophistication. It’s a simple fixed structure to carry and transport containers from one place to another. Overhead cranes are used during the loading and unloading process. You can use a common container chassis to transport 20ft, 40ft, or 45ft containers.
These chassis have visibly-marked spots to help identify the position where the containers need to be placed securely. Common container chassis are affordable and pretty easy to use. However, you may end up paying extra for external equipment such as overhead cranes.
Different container chassis models in the market
Depending on your shipping requirements and, of course, the container size, there are several types of chassis available in the market. Let’s take a look at them.
Chassis type by dimension

20ft container chassis
40ft – 45ft container chassis
48ft to 53ft domestic container chassis

Chassis type by purpose

Generator chassis
All chassis model
Tank chassis
Flatbed chassis

Chassis type by feature/design

Gooseneck chassis
Extendable chassis
Heavy-duty chassis
Lightweight chassis
Combo chassis
Rear B-train chassis
Straight frame chassis
Canadian Chassis

How to choose the right container chassis?
By now, you already have an idea about container chassis and the different types. But along with that, you must also know which container chassis is suitable for you. Choosing the ideal one largely depends on your requirements. Businesses can choose what’s best and most affordable for their daily operations.
Having an idea of how to choose a container chassis will help ensure that your containers go through a smooth loading and unloading process. It’ll also save you a few extra dollars. You can consider the following factors:
Usage and requirements (Industry-specific)
If you only need to transport containers, chassis modeled specifically for containers are the best. But, if you need to move other types of cargo, go for a flatbed container chassis trailer – as it serves a dual purpose. If you need to load/unload cargo at specific places, a tilt chassis is a great choice.
Number of axles/ weight threshold
You can choose the number of axles in the chassis depending on the cargo or container weight. Remember: the more the number of axles, the more load capacity it can hold. For daily usage, 2 or 3-axle chassis is your best choice.
Costs incurred
Consider your container specifications and requirements before choosing a chassis. Usually, a specialized chassis costs higher than the regular one

20′ ISO CONTAINER CHASSIS

20′-40′ MAXIMIZER 12-PIN 2-AXLE FLIP-UP REAR BOLSTER CHASSIS Carries one 20′ or 40′ ISO container or two empty 20′ ISO containers. Meets all DOT and FMVSS regulations and applicable to operate in the United States.
20′-40′ CITY 49″ SPREAD 2-AXLE CHASSIS Carries one 20′ or 40′ ISO container. Meets all DOT and FMVSS regulations and applicable to operate in the United States.
20′-40′ MAXIMIZER 12-PIN 3-AXLE FLIP-UP REAR BOLSTER CHASSISCarries one 20′ or 40′ ISO container or two empty 20′ ISO containers. Applicable to operation in the United States.
20′-40′ CITY 72″ SPREAD 2-AXLE CHASSISCarries one 20′ or 40′ ISO container. Applicable to operation in Canada.
20′-40′ CITY 60″ SPREAD 3-AXLE CHASSIS Carries one 20 ft (50,000 lb max) or one 40 ft ISO Container applicable to operation in Canada.
20′-40′-45′ CITY 72″ SPREAD 2-AXLE CHASSIS
20′-40′-45′ CITY 3-AXLE CHASSISCarries one 20′, 40′, or 45′ ISO container. Applicable to operation in Canada.
20′-40′-45′ CITY 49″ SPREAD 2-AXLE CHASSIS Can carry one 40 ft. container, or one 45 ft. container, or one 20 ft. container and meets all DOT and FMVSS regulations and applicable to operations in the United States.
22′ REVERSE B–TRAIN CHASSIS (LEAD)Carries one 20 ft ISO Container applicable to operation in Canada.
23.5’ SLIDER CHASSIS Carries one 20′ ISO container. Applicable to operation in the United States.
31’ BRIDGEMASTER HEAVY-DUTY EXTENDABLE 3-AXLE CHASSIS Carries one heavy 20′ ISO container. Applicable to operation in the United States.
33’ BRIDGEMASTER EXTENDABLE 3-AXLE CHASSIS Carries one heavy 20′ ISO container. Applicable to operation in the United States.
 40′ 12-PIN 49″ SPREAD 2-AXLE CHASSIS Can carry one 40 ft. container, two 20 ft containers (weighted no more than 24,000 lbs), one 20 ft. container at front (no more than 33,900 lbs.), one 20 ft. container in the middle (no more than 42,000 lbs.), one 20 ft. container at the rear (no more than 33,000 lbs.)
43′ 2-AXLE TANK CHASSIS, HI-LO READY Carries one loaded 20′ ISO container (including tanks) or two empty 20′ ISO containers with optional Hi-Lo kit
44′ 2-AXLE TANK CHASSIS
46′-53′ EXTENDABLE 4-AXLE CHASSIS Carries one heavy 20′, 40′, or 45′ ISO container or two 20′ ISO containers

SPECIAL HAULING REQUIREMENTS? JUST ASK!
Cheetah Chassis can work with you to design a chassis to meet your specific needs.
