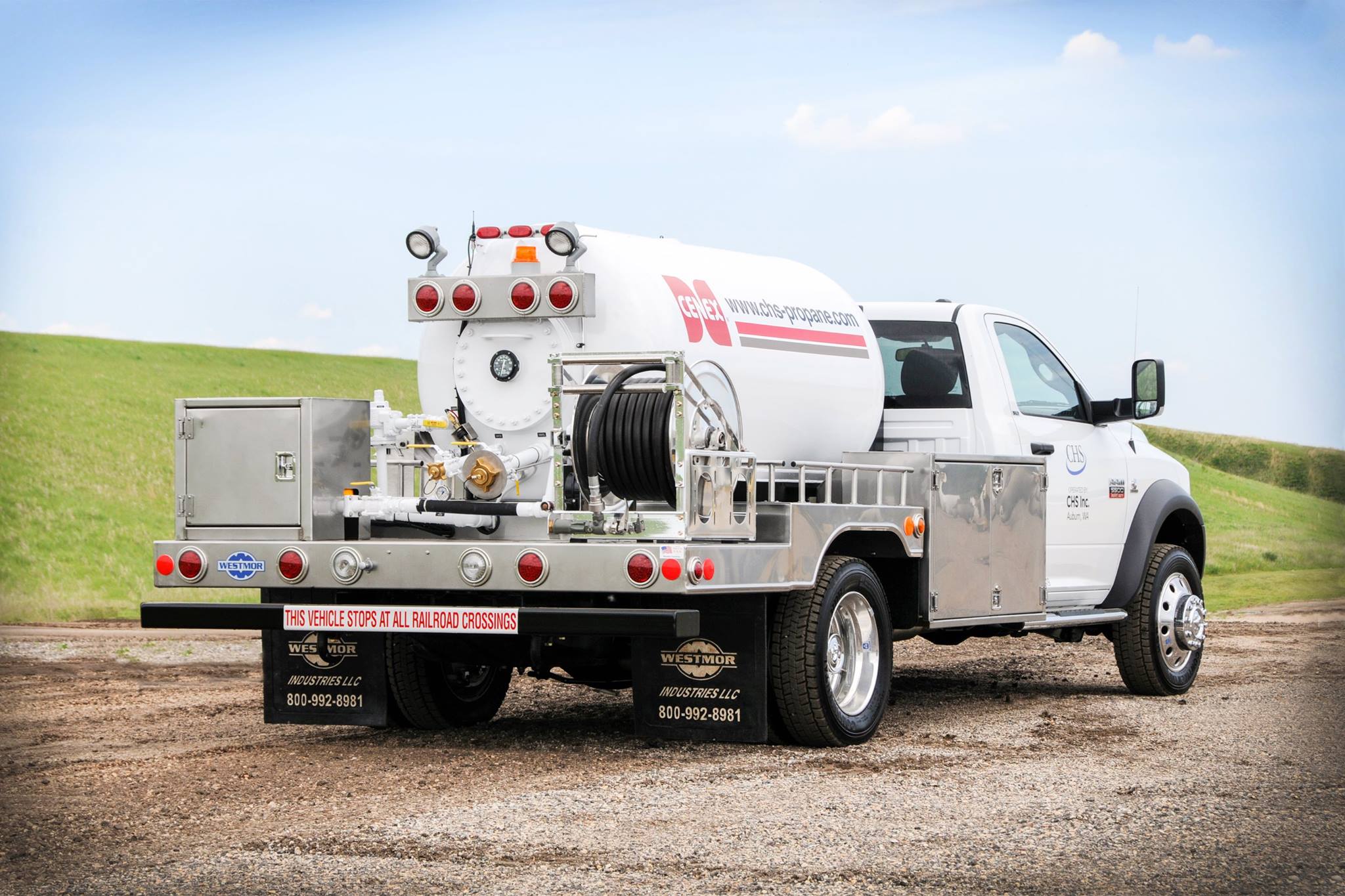

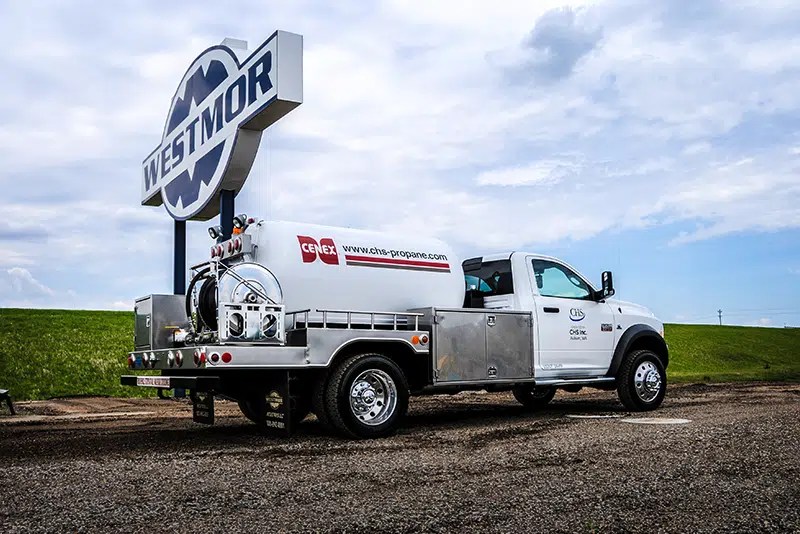

Blueline MX Bobtail

BASE MODEL
Blueline MX Bobtail is designed for delivery to hard-to-reach locations and filling small cylinders: 30, 40 and 100 lbs.

BLUELINE MX BOBTAIL

Maneuverability Model

Designed for delivery in hard-to-reach areas
Ideal for filling small propane cylinders
Multiple configurations available

Customizable trailer weights and balances allow you to maximize your load potential and reduce delivery costs. n Built for the long road ahead, our manufacturing practices reduce premature wear and failures. n
Each transport is manufactured to your specific application, making ordinary and mundane trailers a thing of the past. n Repair and service locations in CA, Minnesota, Wisconsin and Kansas.

Features

Westmor-manufactured vessel
Westmor-manufactured stainless steel decking
Bolt-on removable fenders
Centrally-located electrical panel
LED lighting wired to meet FMVSS 108
Welded internal piping
Axalta Imron® elite paint
Manufactured in the United States

Options

Stainless steel open or enclosed deck
Bolt-on stainless steel or half-round aluminum fenders
Work lighting at rear of tank or back of cab
Strobe lighting at rear of tank and front of truck
1.25” customer pump-out line
2” self-loading line
Painted carbon steel, painted stainless steel or polished stainless steel piping
Rock Guard protection applied to lower portion of tank and chassis frame rails
Multiple meter options including: Liquid Controls (LC), Total Control Systems (TCS) or Red Seal (Neptune)
Choose your register: LCR-II, LCR-600, LCR.iQ, TSC3000 or MID:COM E:count

High-mount tail light bar

Hose reel cover

Back-up camera

Enclosed decking

Pump stabilization

Service pack cabinet

Stock Inventory
Drive a Blueline Bobtail off the lot. Check out Westmor’s stock inventory of truck and trailers.

Have questions, need a quote, or need it customized? Complete the form below and we will follow up shortly.

REQUEST MORE INFO

Truck & Trailer Services

When it comes time for inspections, maintenance, parts or repairs, we are well-equipped to serve you.
Click on any service to get more information.

TESTS & INSPECTIONS

From DOT inspections to meter calibrations and upgrades, Westmor can help you to stay compliant with regulations. Stay running smoothly all season long.

PARTS

In need of a replacement part? We have stock on hand, ready to ship. Meters, pumps, valves, registers and more. Same day shipping is available in most cases.

REPAIR & REFURBISH

Whether you need a major refurbish or a simple repair, we can help you get up and running at one of our truck service centers.
Westmor (Morris, Minn.) offers a bobtail on these chassis with a 500-gal. to 1200-gal. tank. This Blueline MX bobtail is dubbed the “maneuverability model.” Milt Swenson, territory manager, vessel sales and special projects, explains, “This for getting in and out of smaller areas. It’s typically a smaller truck on a Ford or Chevy chassis. It’s not as prevalent as the bigger bobtails.”
“Diesel tends to have a little more power. Customers may have other diesels in their fleet, too, so they may want a new one for that reason,” McElroy explains. “People buy the Ford gas engine to get a propane conversion put on, because Ford offers a gas prep engine for conversions to natural gas or propane. Texas is trending toward dedicated alternate fuel vehicles with grant money available through the Texas Commission of Environmental Quality.”
Buy Blueline MX Bobtail Online
Safety, Handling
Along with these latest developments and current offerings of chassis, the truck builders highlighted longer-term trends they see in the equipment options chosen when speccing a chassis.
“Most of our customers are looking for safety, first and foremost,” says Joey Runnels, vice president of Mississippi Tank (Hattiesburg, Miss.). “That means visibility out of the cab; an automatic transmission, so there’s nothing to shift; and aftermarket backup cameras and sensors.”
“Disc brakes are becoming popular, as opposed to drum brakes,” says Swensen of Lin’s Propane Trucks. “There is an up-charge for discs, but they stop better. Disc brakes are not a huge percentage, but there are more coming though.”
Blueline MX Bobtail For Sale
“A locking rear differential has become almost a standard item; it is not standard on the trucks, but it has become kind of a standard in our industry,” says Bloomstrand of Rocket Supply. “It’s all we stock and it’s something most customers want. When you are in snow or on soft ground, like you might be with an agricultural customer, a locking rear differential allows both wheels, on both sides of the truck, to lock in rather than having one wheel spin.”
“Another thing to consider is weight savings on the chassis,” he adds. “Aluminum wheels and the engine you spec can make for a lighter chassis. That means you can carry more.”


One Trailer = Two Trucks
 customers and industry contacts have talked a lot about driver shortages and its a real concern.
The standard Blueline® Distribution Trailer model features a 6,000-gallon cargo tank, which is near twice the capacity of a typical single-axle bobtail. This means fewer trips to the bulk plant, opportunities to consolidate routes, and the versatility to supplement transport loads, as needed. The increased productivity can help reduce the demand for more drivers.
In some cases, a single trailer and driver can replace two bobtails and two drivers.
The Evolved Design.
The distribution trailer product has been around for decades but Westmor has evolved the design to help alleviate challenges with chassis shortages.

The Blueline® Distribution Trailer has the same features and options as our Blueline® Bobtails. Because it’s a trailer, you do not need to wait for chassis availability to deliver your propane.
As an added bonus, the payload can reduce the demand on your bobtails, or free up your bobtails to grow gallons in other markets, and the trailer will reduce trips to the bulk plant.
Kenworth, Peterbilt and Freightliner chassis available

Freightliner Standard Build

NEW 325 HP MODEL Standard Features

Chassis –
Freightliner M2 106 Plus with Cummins B6.7 325 HP engine
Allison 3500 RDS automatic transmission with PTO provision
Professional trim package

Barrel –
New 80” 3,200-Gal tank
Aluminum Deck –
Aluminum open deck, natural finish deck and fenders, meter cabinet

Bobtail –
3” Fisher main valve, 3” Corken truck pump
Liquid Controls meter with LCR II register head, printer in cab
1″ x 150’ liquid delivery hose
Single electric hose reel with Guidemaster
24x24x48″ aluminum tool box
Back up camera
PTO with driveshaft
Four function remote shutdown; Estop, PTO, Throttle, and Reel Out
White tank paint with rock guard on lower tank
MNSTAR electrical harness

Hydro/VK and calibrated

Options

In addition to chassis type, engine and transmission, tank size, and deck finish, choose from these and other options to get a custom propane delivery truck that is perfect for your specific needs:

Fisher and Rego Valves
Corken and Blackmer Pumps
Neptune and Liquid Controls Meters
Various Register choices with In-Cab Printer
Multi-Function Remote Shutdown Systems
Liquid and Vapor Delivery Hoses
Weatherproof wiring harness
Single and Twin Hose Reels
Three Tool Box Sizes
Cab and Tank Paint
And more!

Blueline Bobtail MODELS

BLUELINE BX BOBTAIL

Base Model

Up to 3,499 gallons
Designed for shorter run deliveries to residential, farms and commercial customers
Chassis options

BLUELINE HX BOBTAIL

High-Volume Delivery Model

3,500 – 7,000 gallons
Designed for longer distance deliveries, multiple drops or large single bulk drops
Chassis options

BLUELINE MX BOBTAIL

Maneuverability Model

Designed for delivery in hard-to-reach areas
Ideal for filling small propane cylinders
Multiple configurations available

BLUELINE QX BOBTAIL

Lightweight Model

3,700 gallons on a single axle
Designed to haul for residential, farm or commercial use
Rental program available

Blueline Bobtails

PROPANE DELIVERY TRUCKS

The Blueline® Bobtail is one of the safest, most versatile and reliable propane delivery trucks in the market. Regardless of delivery application, our on-site manufacturing and fabrication facilities allow for full customization so your truck fits your exact needs.
Design your bobtail with the help of Westmor’s in-house engineers. You can add any number of our innovative, patent-pending options like our Ergoload® Deck Design.
Westmor manufactures our own vessels, ensuring you receive competitive pricing and on-time delivery.

STANDARD FEATURES

Tanks are manufactured and upfitted in-house
Stainless steel open deck and fenders
Welded/flanged liquid piping
Bolt-on fenders allow you to easily replace if damaged
Centrally-located, plug-and-play electrical center
Heavy duty meter box protects your meter from the elements
LED lighting makes your bobtail more visible on the road
Radio remote control systems to improve safety and productivity

WESTMOR ONLY: DECK OPTION FOR BLUELINE BOBTAILS

Ergoload Deck »

Ergonomic position for loading
Waist-height spray-fill and vapor recovery lines
Reduces strain, stress and injury to operators
Patented technology

Stock Inventory
Check out Westmor’s stock inventory of truck and trailers. New and used trucks are available.

Bobtail Innovation

ERGOLOAD® DECK DESIGN

Waist-high spray-fill and vapor-return connections
Lower deck is easier to access for drivers
Reduces strain on the driver during fills

MID-DELIVERY

Safer option for residential and city deliveries
Minimizes the need to back up
Improved driver productivity with fewer steps needed during delivery

FLEX FILL

Increase productivity with higher flow rates
Add versatility and efficiency with multiple hose reels
Improve route efficiency

PATHWAY™ DELIVERY SYSTEM

Swiveling ergonomic reel positioning
Creates efficiency with propane delivery
Locks into preferred position

Bobtail Service Pack Module

KEY BENEFITS / FEATURES

Westmor’s service pack option is designed to allow for convenient access to tools and storage. Drivers can organize and store fittings, tools and equipment in an organized drawer system and perform minor service work without disrupting their route.

Drawers lock in place when closed
Customizable dividers allow drawers to be configured to fit
Optional LED light bar

Small Service Pack

18″ tall x 18″ deep x 36″ wide aluminum cabinet
3 shallow drawers
Optional LED light bar

Large Service Pack

36″ tall x 24″ deep x 48″ wide aluminum cabinet
1 shallow drawer and 3 deep drawers
Shelf area on top for additional storage
