Blueline® QX Bobtail

The Blueline® QX Bobtail is designed to haul 15% more payload on a single axle for residential, farm or commercial use.

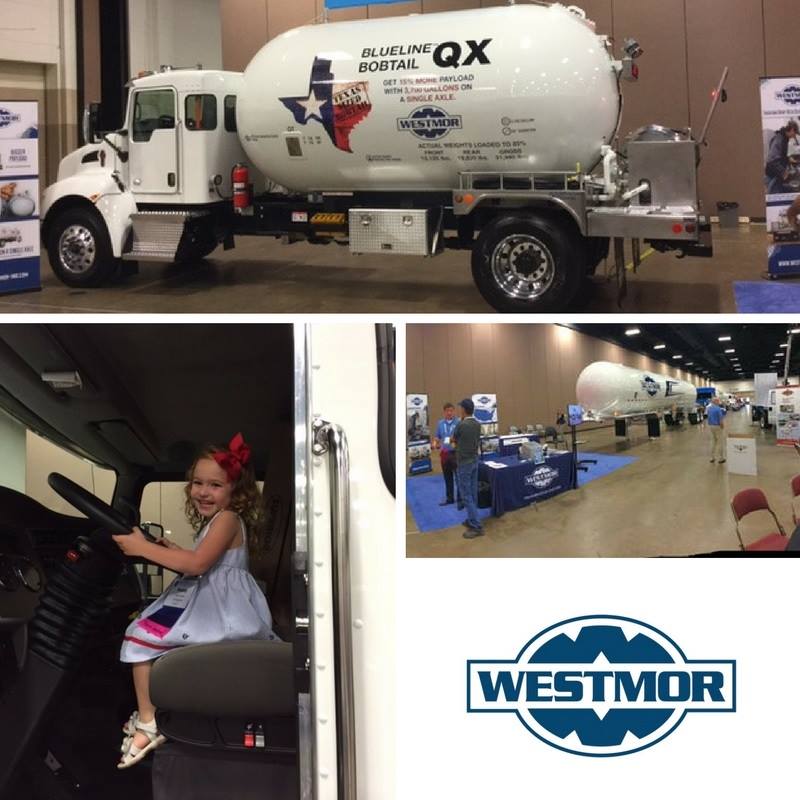

3700 Gallon Blueline® QX Bobtail

BASE MODEL

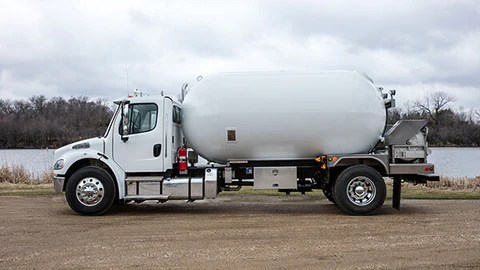

Blueline QX Bobtail

LIGHTWEIGHT MODEL (QUENCH TEMPERED STEEL)

Improve your operational efficiency with our lightweight bobtail model. Westmor’s top-selling Blueline QX Bobtail is designed with a quench and tempered steel tank.

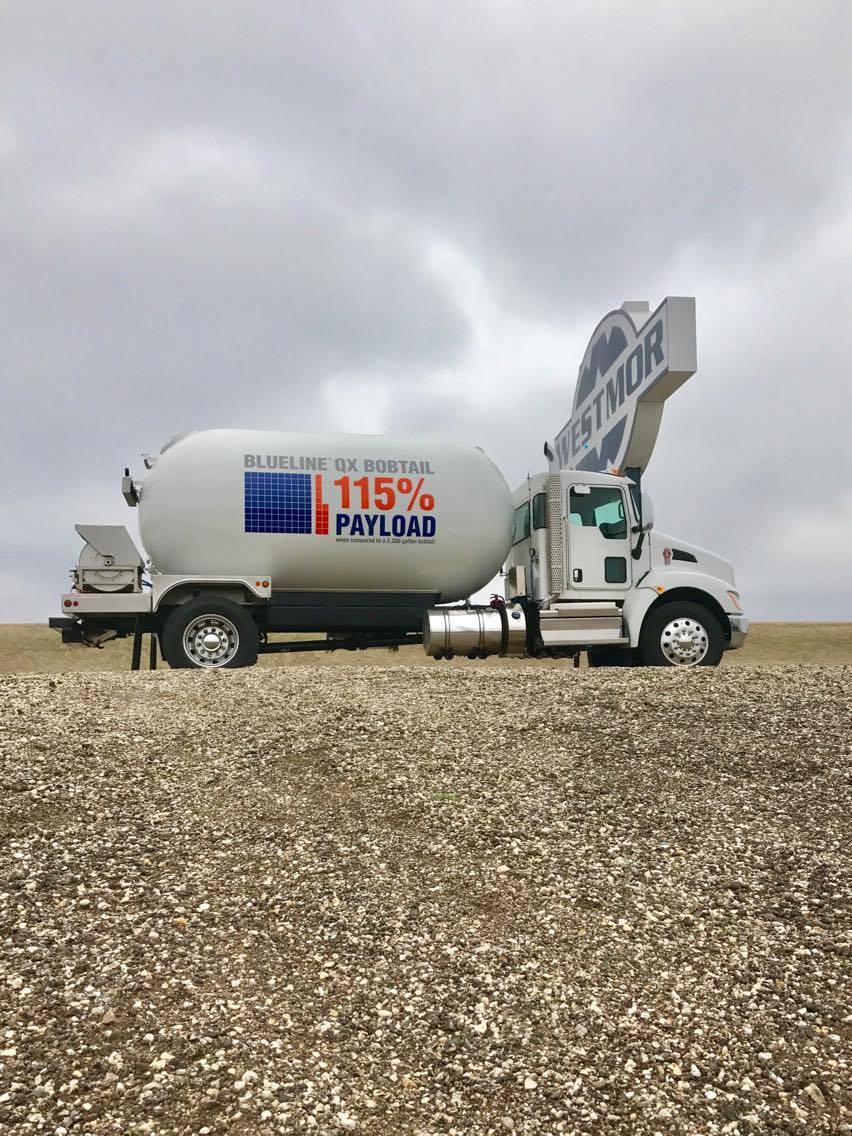

In other words, we’re using stronger, lighter, high-quality steel– so we can give you a higher volume tank on the same chassis. That’s 15% more payload than a standard Blueline Bobtail.

Choose your preferred chassis:

Freightliner
Kenworth
Peterbilt
Ford

International
Hino
Western Star
Propane-powered chassis

This model is designed for delivery to residential, farm or commercial applications. And of course, we customize.

Increased driver efficiency with the flexibility to make more drops per load
Custom vessels from 3,200 to 8,250 gallons
High quality-control and shorter lead times with in-house manufacturing
Cutting-edge manufacturing providing you with a top-of-the-line truck

Fuel Delivery Options

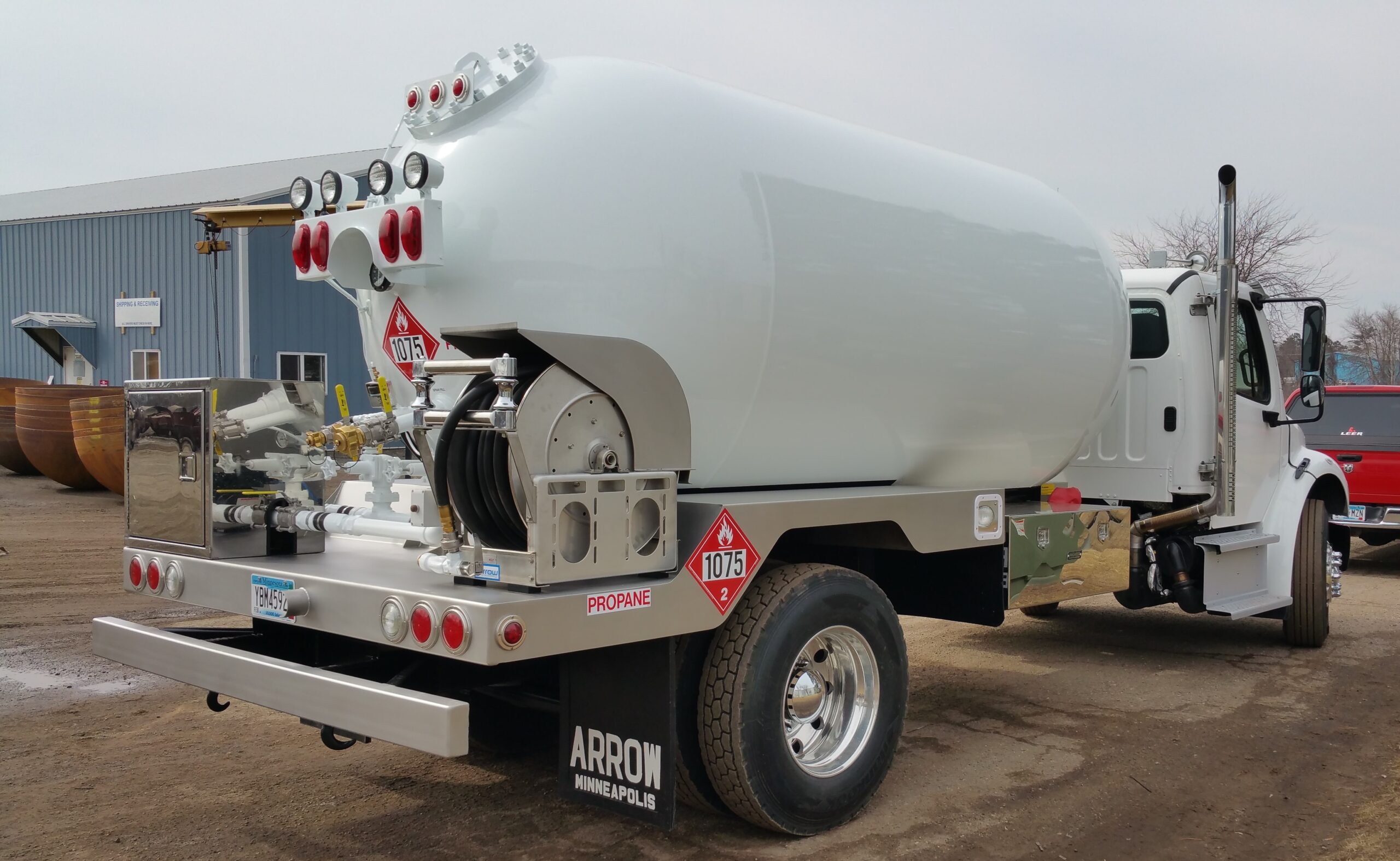

STANDARD DELIVERY

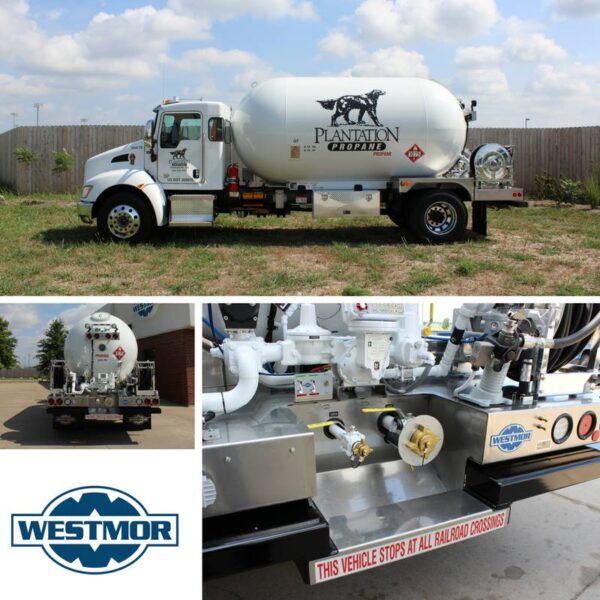

Fuel delivery from rear of truck
Hose reel options available
Ergoload® Deck design available (standard deck pictured)

MID-DELIVERY

Inverted hose reel located behind cab
Hose reel allows for delivery off either side of truck
Additional versatility for residential and commercial deliveries

Blueline QX Bobtail Walk-Around

Get a tour of the key features.

Features

Westmor-manufactured vessel
Westmor-manufactured stainless steel decking
Bolt-on removable fenders
Centrally-located electrical panel
LED lighting wired to meet FMVSS 108

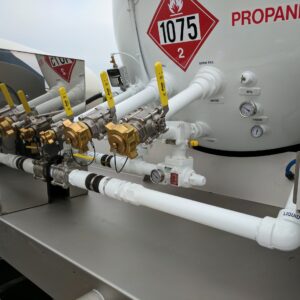

Welded internal piping
Axalta Imron® elite paint
Manufactured in the United States

Options

Bolt-on stainless steel or half-round aluminum fenders
Standard rear or mid-delivery options
Open or enclosed decking with or without Ergoload® Deck Design
LP3 Delivery system
Ask about our many safety features and options
Custom paint
Work lighting at rear of tank and back of cab
Strobe lights at rear of tank and front of truck
Tank evacuation/self-load: 1.25” customer pump-out line, 2” self-loading line

Painted carbon steel, painted stainless steel or polished stainless steel piping
Rock Guard protection applied to lower portion of tank and chassis frame rails to prevent corrosion
Multiple meter options from Liquid Controls (LC), Total Control Systems (TCS) and Red Seal (Neptune)
Register options: LCR-II, LCR-600, LCR.iQ, TCS3000, MID:COM E:count

We’re serious about propane here in CA. We chose Westmor because of their history (they’ve been in the business for a long time.) We eliminate at least one trip per day to the bulk plant with the extra gallons this truck carries.

Common Options

See common options on the Blueline QX Bobtail by Westmor Industries.

Hose reel cover

Pump stabilization

Back-up camera

Elevated rear lights

Enclosed decking

Service pack cabinet

WESTMOR ONLY: DECK OPTION FOR BLUELINE BOBTAILS

Ergoload Deck »

Ergonomic position for loading
Waist-height spray-fill and vapor recovery lines
Reduces strain, stress and injury to operators
Patented technology

Stock Inventory
Drive a Blueline Bobtail off the lot. Check out Westmor’s stock inventory of truck and trailers.

Have questions or need something customized? Complete the form below and we will follow up shortly.

REQUEST MORE INFO


Truck & Trailer Services

When it comes time for inspections, maintenance, parts or repairs, we are well-equipped to serve you.
Click on any service to get more information.

TESTS & INSPECTIONS

From DOT inspections to meter calibrations and upgrades, Westmor can help you to stay compliant with regulations. Stay running smoothly all season long.

PARTS

In need of a replacement part? We have stock on hand, ready to ship. Meters, pumps, valves, registers and more. Same day shipping is available in most cases.

REPAIR & REFURBISH

Whether you need a major refurbish or a simple repair, we can help you get up and running at one of our truck service centers.

One Trailer = Two Trucks
 customers and industry contacts have talked a lot about driver shortages and its a real concern.
The standard Blueline® Distribution Trailer model features a 6,000-gallon cargo tank, which is near twice the capacity of a typical single-axle bobtail. This means fewer trips to the bulk plant, opportunities to consolidate routes, and the versatility to supplement transport loads, as needed. The increased productivity can help reduce the demand for more drivers.
In some cases, a single trailer and driver can replace two bobtails and two drivers.
The Evolved Design.
The distribution trailer product has been around for decades but Westmor has evolved the design to help alleviate challenges with chassis shortages.

The Blueline® Distribution Trailer has the same features and options as our Blueline® Bobtails. Because it’s a trailer, you do not need to wait for chassis availability to deliver your propane.
As an added bonus, the payload can reduce the demand on your bobtails, or free up your bobtails to grow gallons in other markets, and the trailer will reduce trips to the bulk plant.
Kenworth, Peterbilt and Freightliner chassis available

Freightliner Standard Build

NEW 325 HP MODEL Standard Features

Chassis –
Freightliner M2 106 Plus with Cummins B6.7 325 HP engine
Allison 3500 RDS automatic transmission with PTO provision
Professional trim package

Barrel –
New 80” 3,200-Gal tank
Aluminum Deck –
Aluminum open deck, natural finish deck and fenders, meter cabinet

Bobtail –
3” Fisher main valve, 3” Corken truck pump
Liquid Controls meter with LCR II register head, printer in cab
1″ x 150’ liquid delivery hose
Single electric hose reel with Guidemaster
24x24x48″ aluminum tool box
Back up camera
PTO with driveshaft
Four function remote shutdown; Estop, PTO, Throttle, and Reel Out
White tank paint with rock guard on lower tank
MNSTAR electrical harness

Hydro/VK and calibrated

Options

In addition to chassis type, engine and transmission, tank size, and deck finish, choose from these and other options to get a custom propane delivery truck that is perfect for your specific needs:

Fisher and Rego Valves
Corken and Blackmer Pumps
Neptune and Liquid Controls Meters
Various Register choices with In-Cab Printer
Multi-Function Remote Shutdown Systems
Liquid and Vapor Delivery Hoses
Weatherproof wiring harness
Single and Twin Hose Reels
Three Tool Box Sizes
Cab and Tank Paint
And more!

Blueline Bobtail MODELS

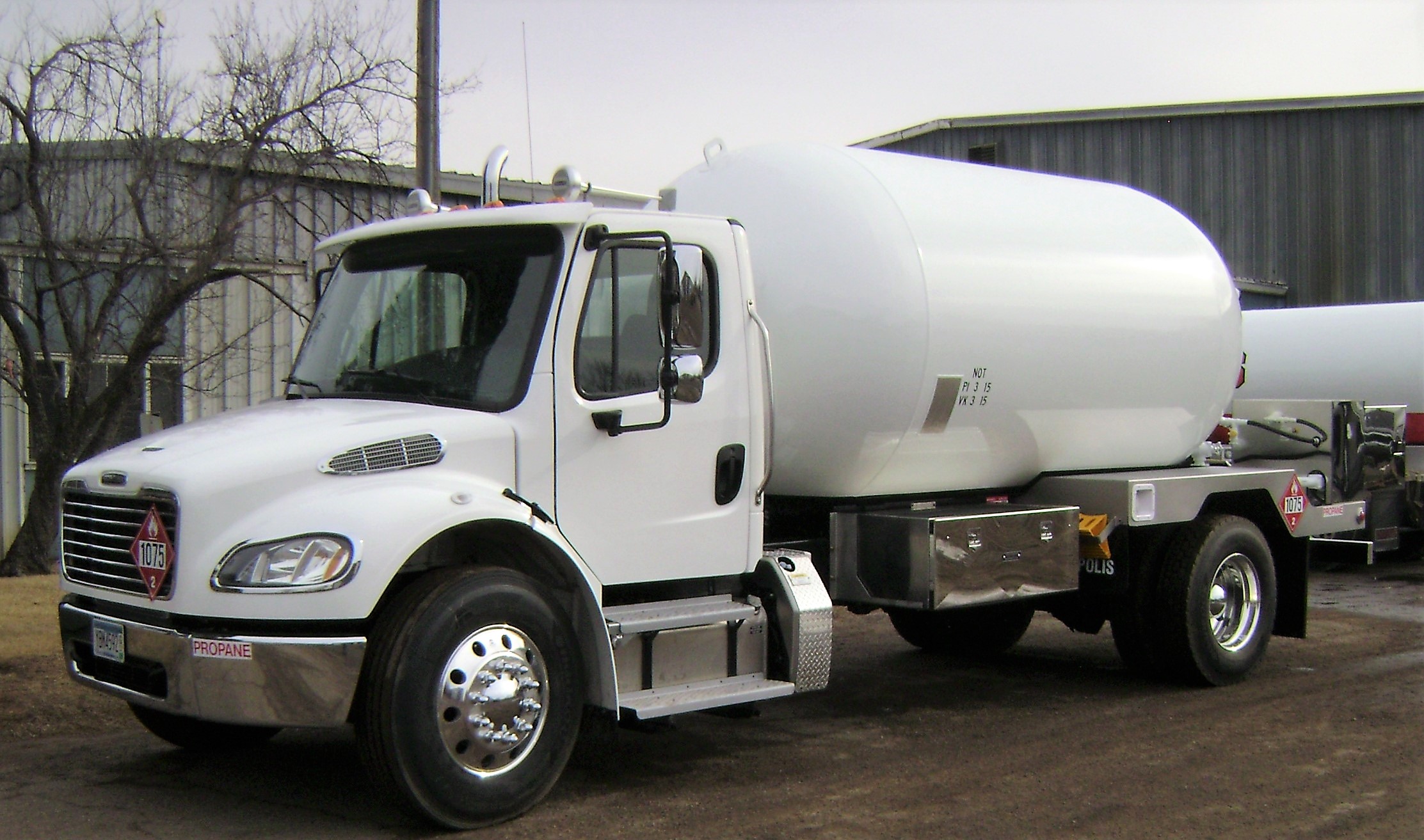

BLUELINE BX BOBTAIL

Base Model

Up to 3,499 gallons
Designed for shorter run deliveries to residential, farms and commercial customers
Chassis options

BLUELINE HX BOBTAIL

High-Volume Delivery Model

3,500 – 7,000 gallons
Designed for longer distance deliveries, multiple drops or large single bulk drops
Chassis options

BLUELINE MX BOBTAIL

Maneuverability Model

Designed for delivery in hard-to-reach areas
Ideal for filling small propane cylinders
Multiple configurations available

BLUELINE QX BOBTAIL

Lightweight Model

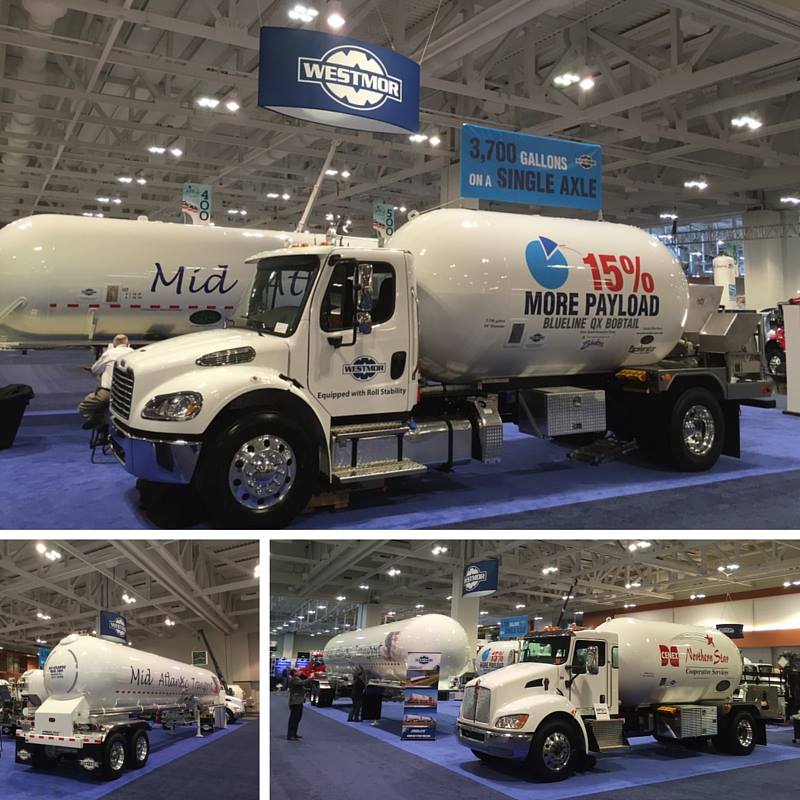

3,700 gallons on a single axle
Designed to haul for residential, farm or commercial use
Rental program available

Blueline Bobtails

PROPANE DELIVERY TRUCKS

The Blueline® Bobtail is one of the safest, most versatile and reliable propane delivery trucks in the market. Regardless of delivery application, our on-site manufacturing and fabrication facilities allow for full customization so your truck fits your exact needs.
Design your bobtail with the help of Westmor’s in-house engineers. You can add any number of our innovative, patent-pending options like our Ergoload® Deck Design.
Westmor manufactures our own vessels, ensuring you receive competitive pricing and on-time delivery.

STANDARD FEATURES

Tanks are manufactured and upfitted in-house
Stainless steel open deck and fenders

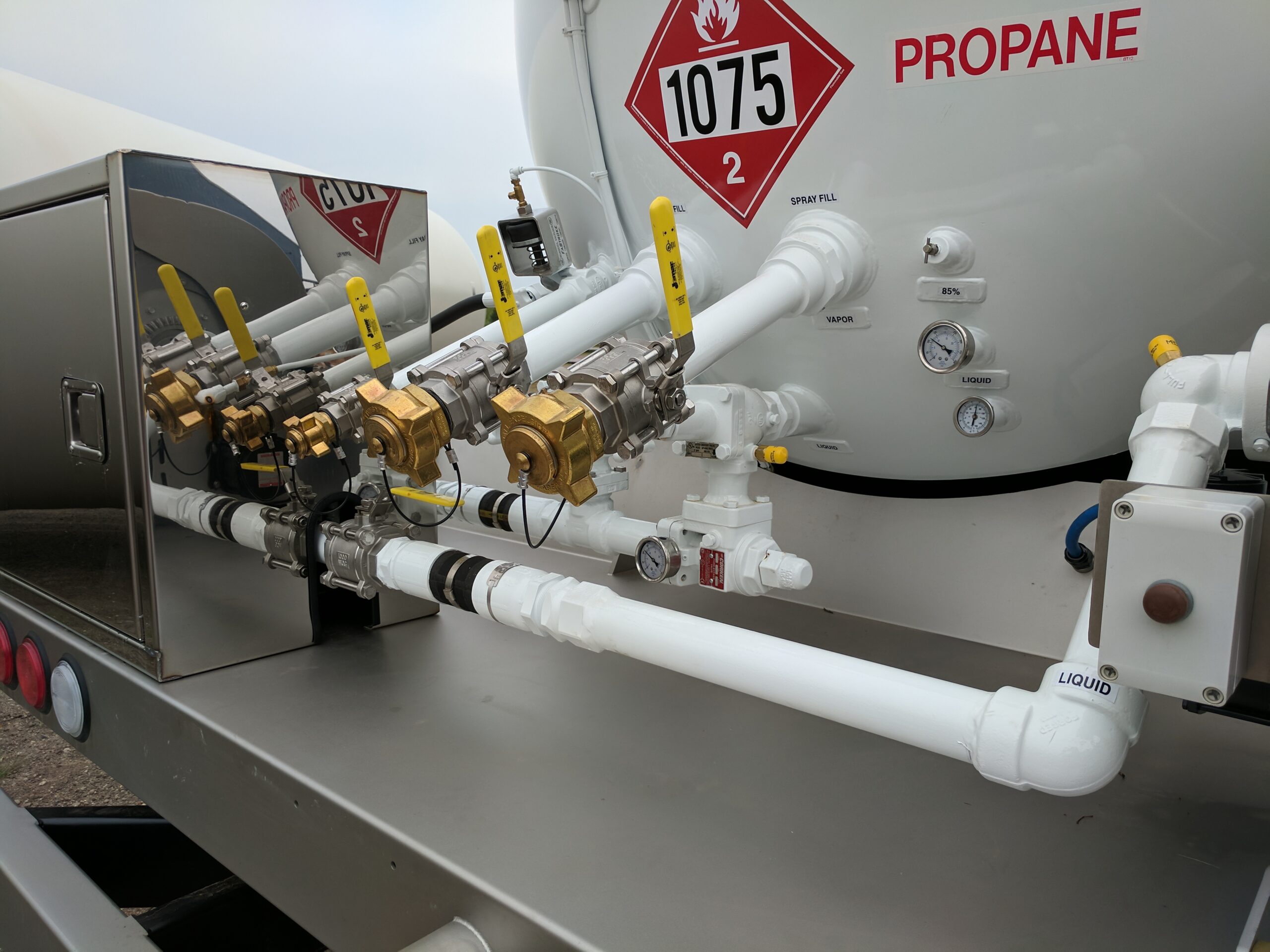

Welded/flanged liquid piping
Bolt-on fenders allow you to easily replace if damaged
Centrally-located, plug-and-play electrical center
Heavy duty meter box protects your meter from the elements
LED lighting makes your bobtail more visible on the road
Radio remote control systems to improve safety and productivity

WESTMOR ONLY: DECK OPTION FOR BLUELINE BOBTAILS

Ergoload Deck »

Ergonomic position for loading
Waist-height spray-fill and vapor recovery lines
Reduces strain, stress and injury to operators
Patented technology

Stock Inventory
Check out Westmor’s stock inventory of truck and trailers. New and used trucks are available.

Bobtail Innovation

ERGOLOAD® DECK DESIGN

Waist-high spray-fill and vapor-return connections
Lower deck is easier to access for drivers
Reduces strain on the driver during fills

MID-DELIVERY

Safer option for residential and city deliveries
Minimizes the need to back up
Improved driver productivity with fewer steps needed during delivery

FLEX FILL

Increase productivity with higher flow rates
Add versatility and efficiency with multiple hose reels
Improve route efficiency

PATHWAY™ DELIVERY SYSTEM

Swiveling ergonomic reel positioning
Creates efficiency with propane delivery
Locks into preferred position

Bobtail Service Pack Module

KEY BENEFITS / FEATURES

Westmor’s service pack option is designed to allow for convenient access to tools and storage. Drivers can organize and store fittings, tools and equipment in an organized drawer system and perform minor service work without disrupting their route.

Drawers lock in place when closed
Customizable dividers allow drawers to be configured to fit
Optional LED light bar

Small Service Pack

18″ tall x 18″ deep x 36″ wide aluminum cabinet
3 shallow drawers
Optional LED light bar

Large Service Pack

36″ tall x 24″ deep x 48″ wide aluminum cabinet
1 shallow drawer and 3 deep drawers
Shelf area on top for additional storage
