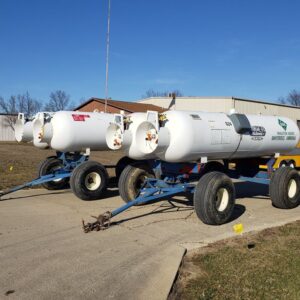

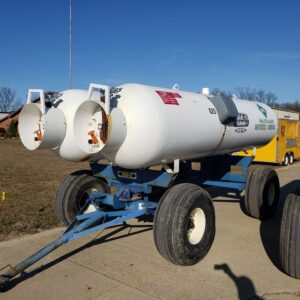

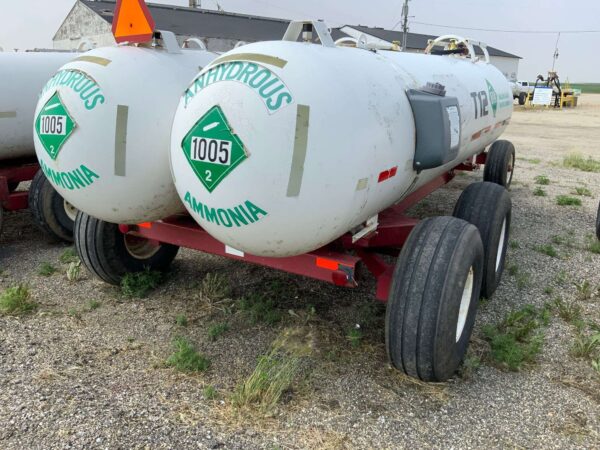

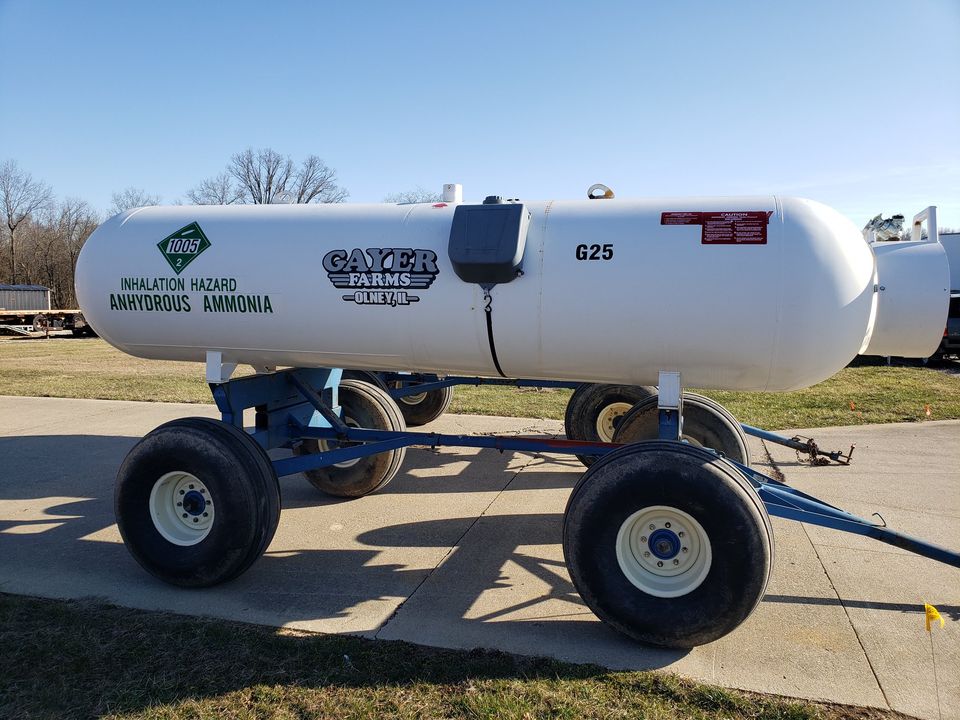

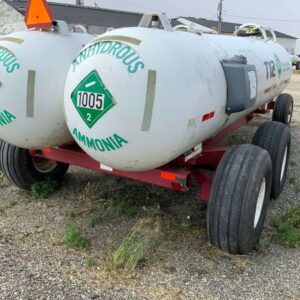

Twin 1,000 Gallon NH3 Tanks
NH3 Nurse Tank, Twin 1000 Gallon, Clevis Style Pin Hitch, Rear Pin Hitch, 11L-15 Front Tires

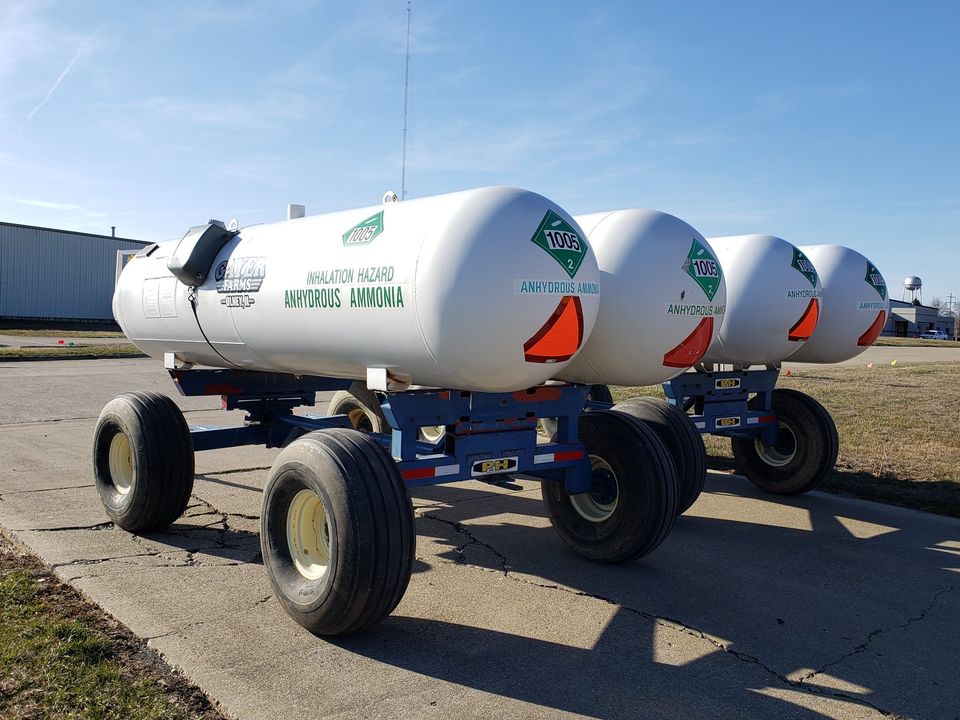

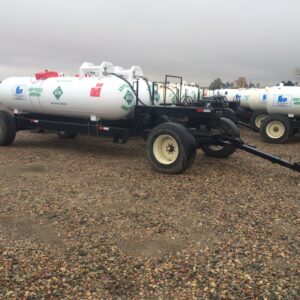

We have made over 70 dual 1000 gallon anhydrous trailers for a local coop.
They haul NH3 to farmers for spring and fall application.

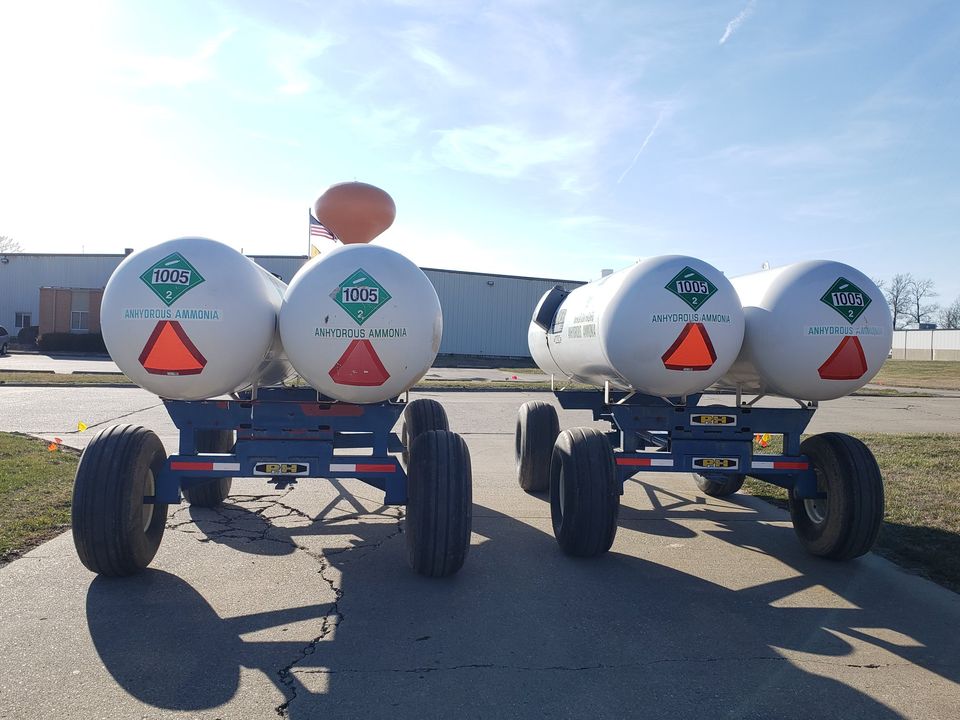

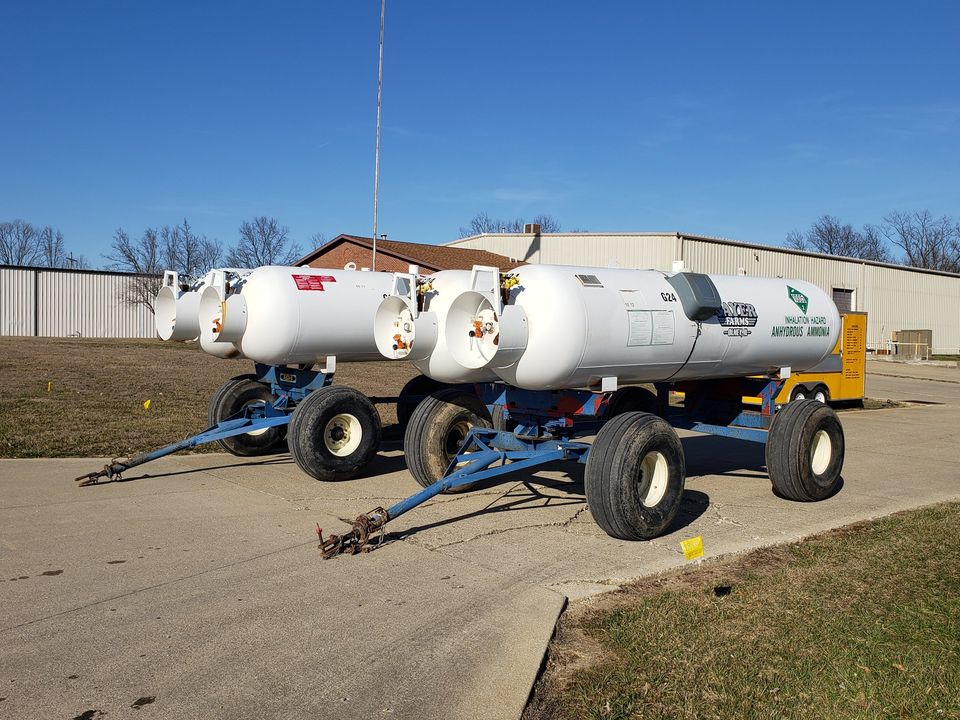

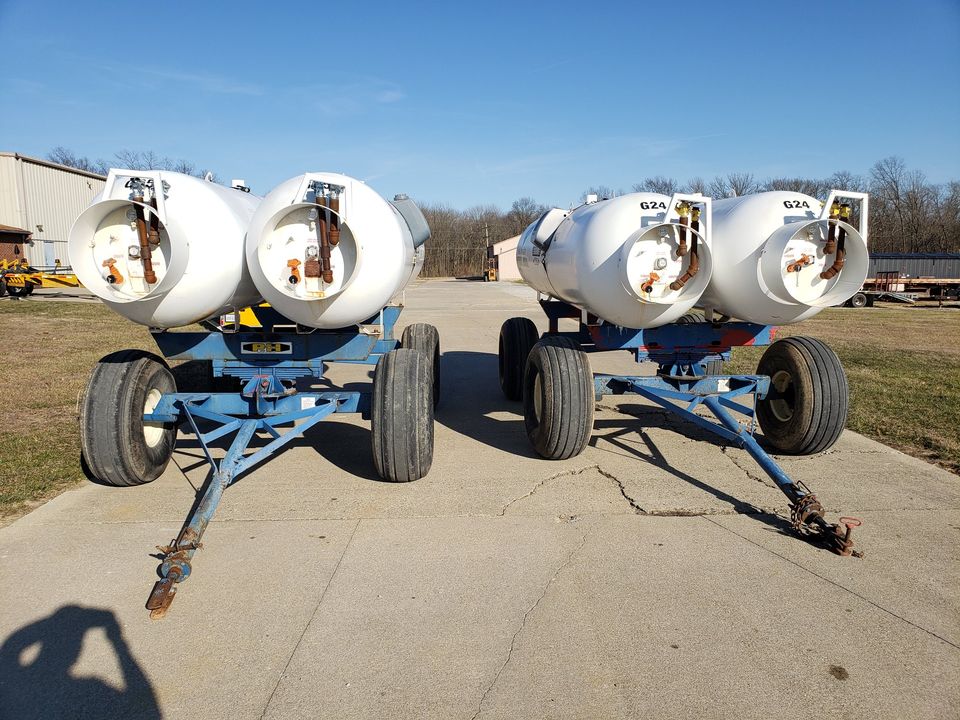

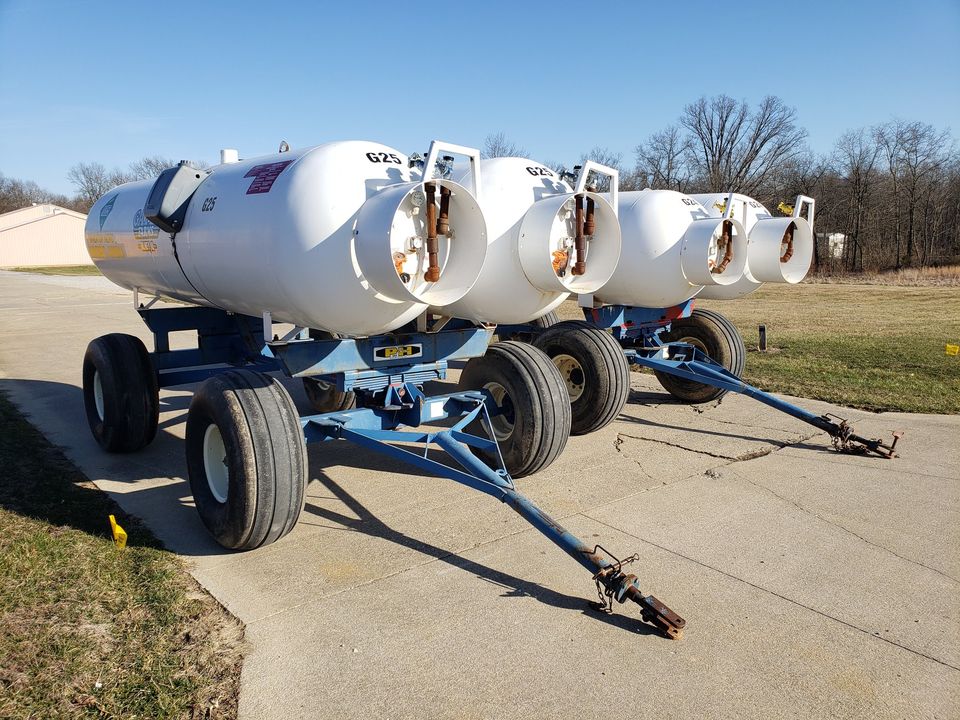

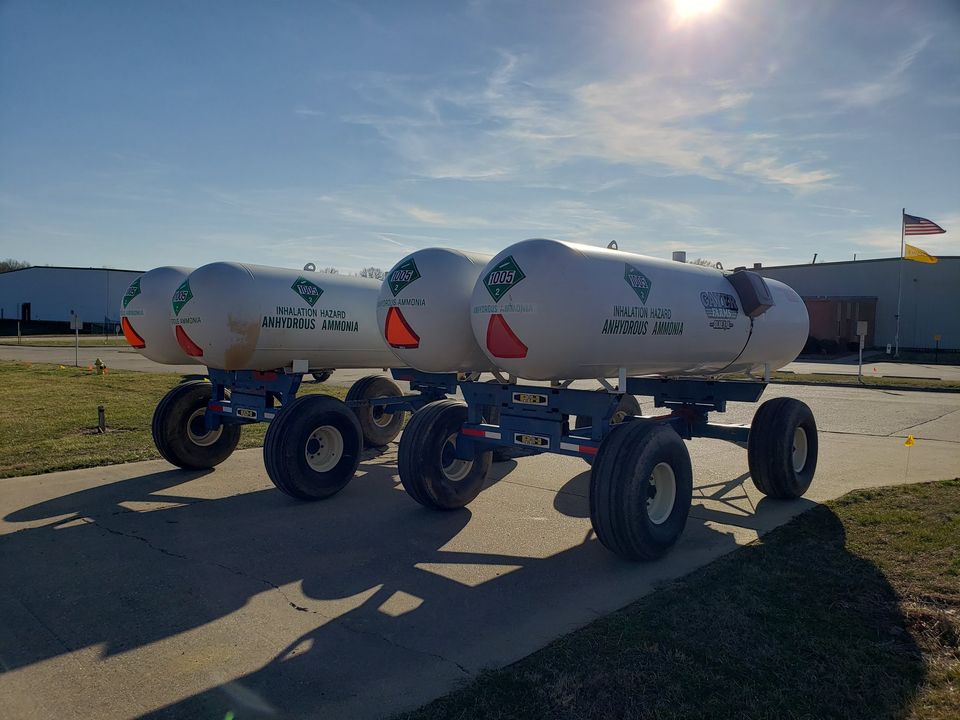

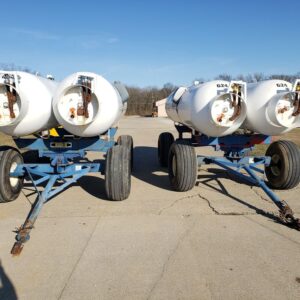

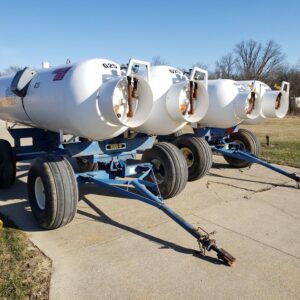

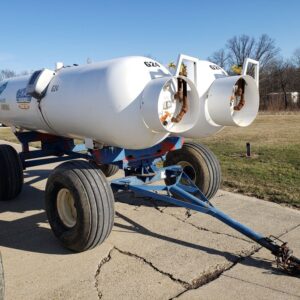

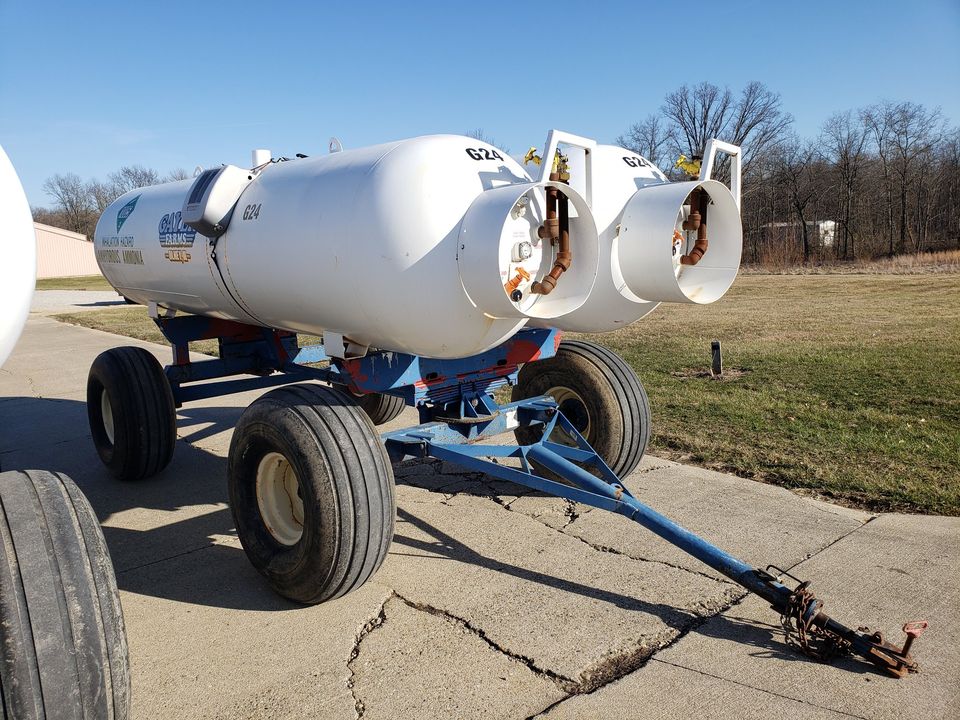

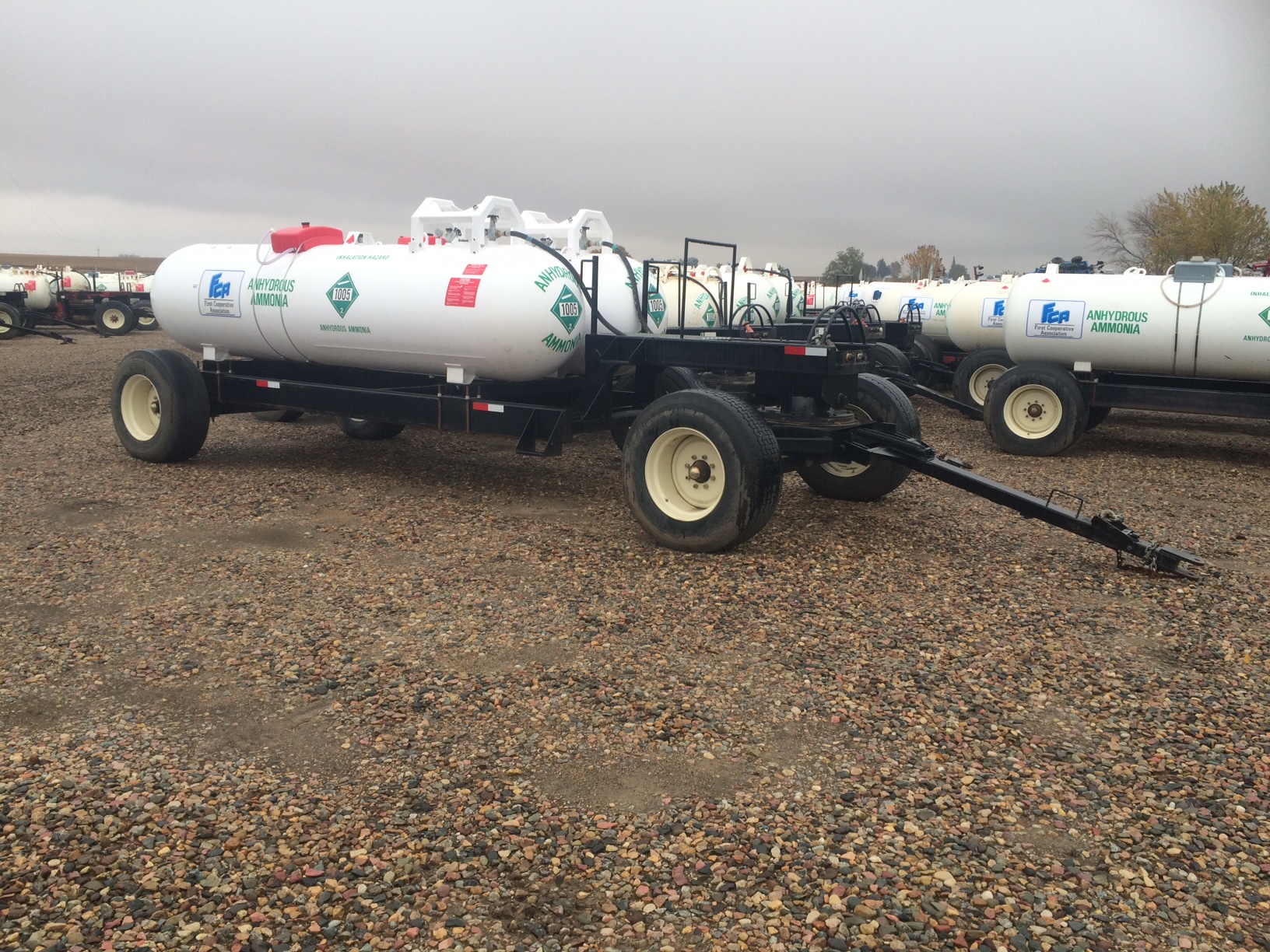

Twin 1000 Gallon Anhydrous Tanks

Twin 1000 Gallon Anhydrous Tanks on 10T P&H Gears, 8 Bolt Hubs, Good 16.5L-16.1 Tires, Water Tanks, Good Data Plates, New Relief Valves, Some New Fill / Withdraw Valves, Good Paint and Good Decals. Front fill but plumbed for top fill and front withdraw. Can be converted back to front fill. Pressured up and ready to use
The trailers are heavily built, with rectangle tube construction, a ball bearing turn table is used for the hitch linkage, rubber torsion axle on the front and 425 cement track tires are the mode for rolling down the highway.

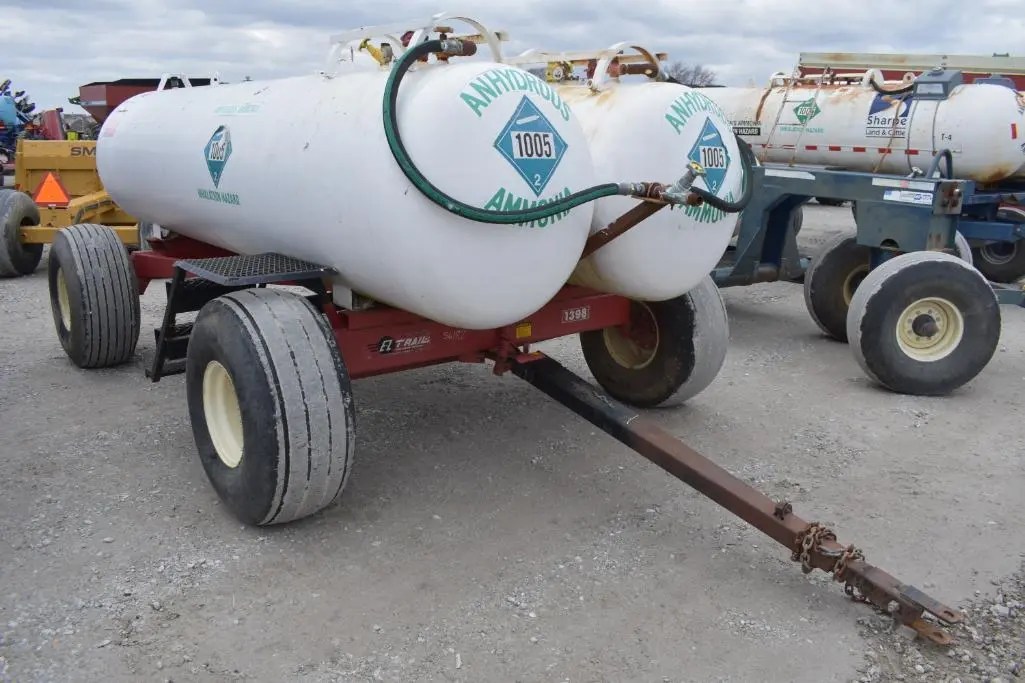

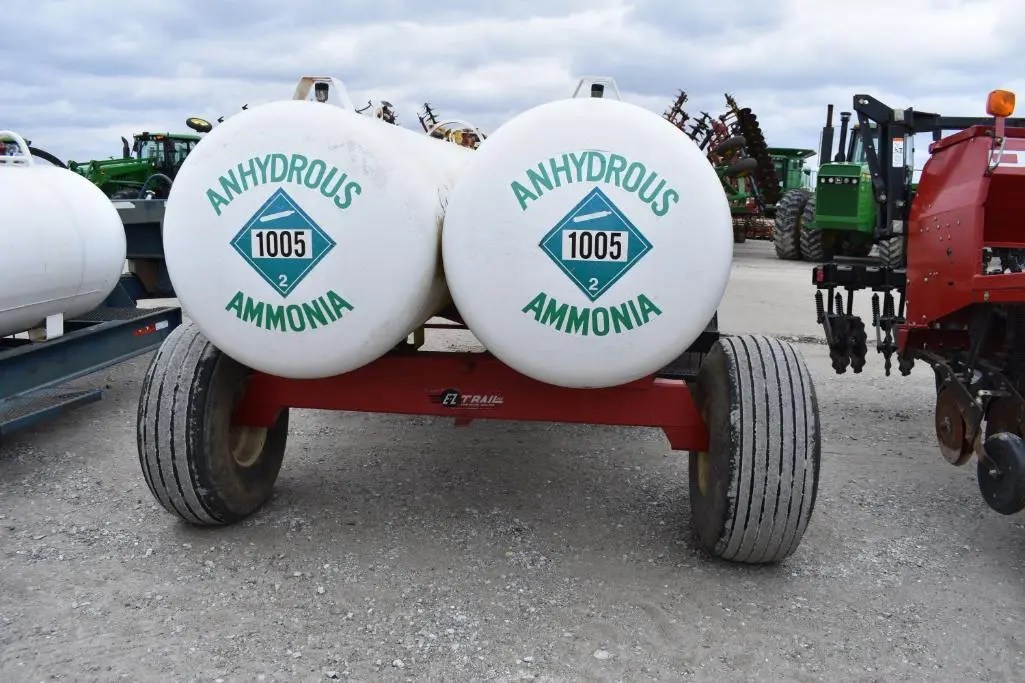

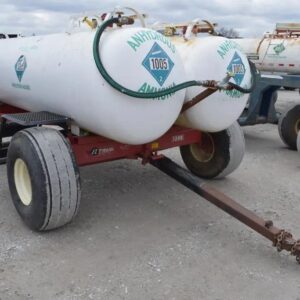

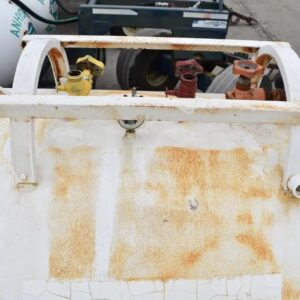

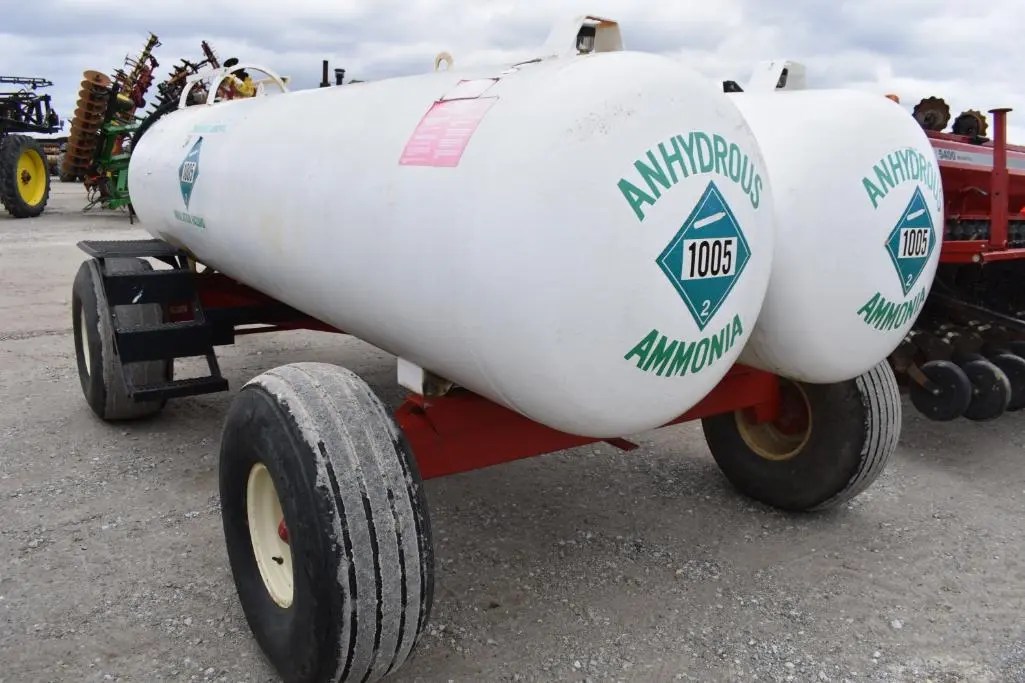

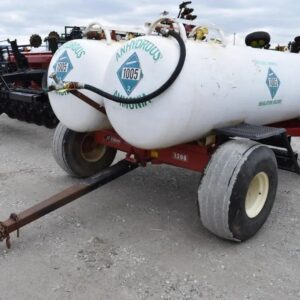

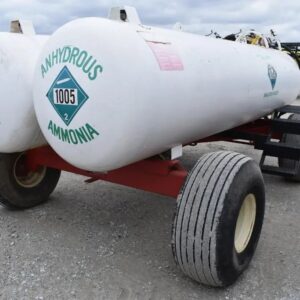

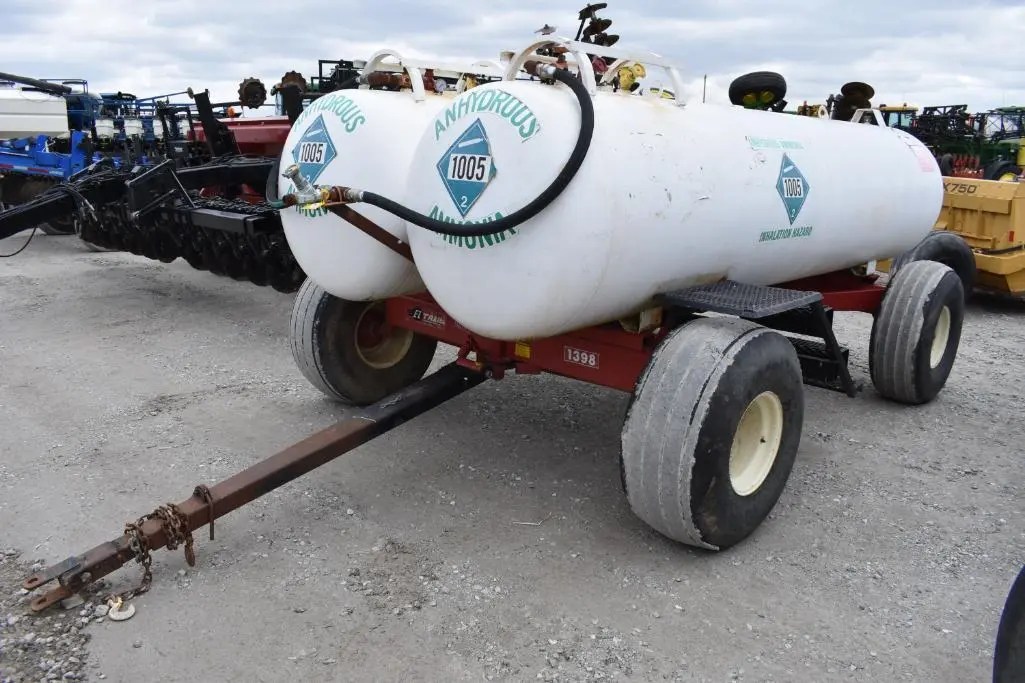

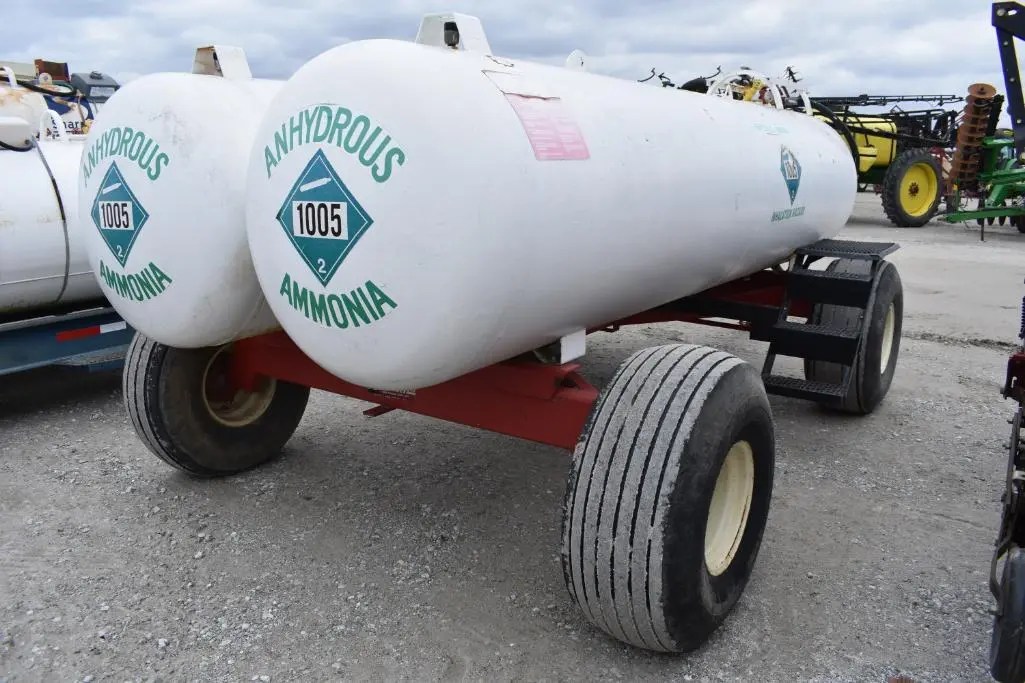

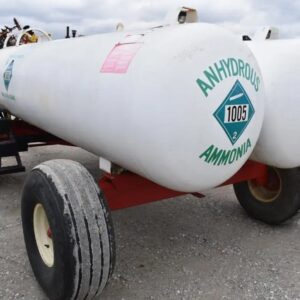

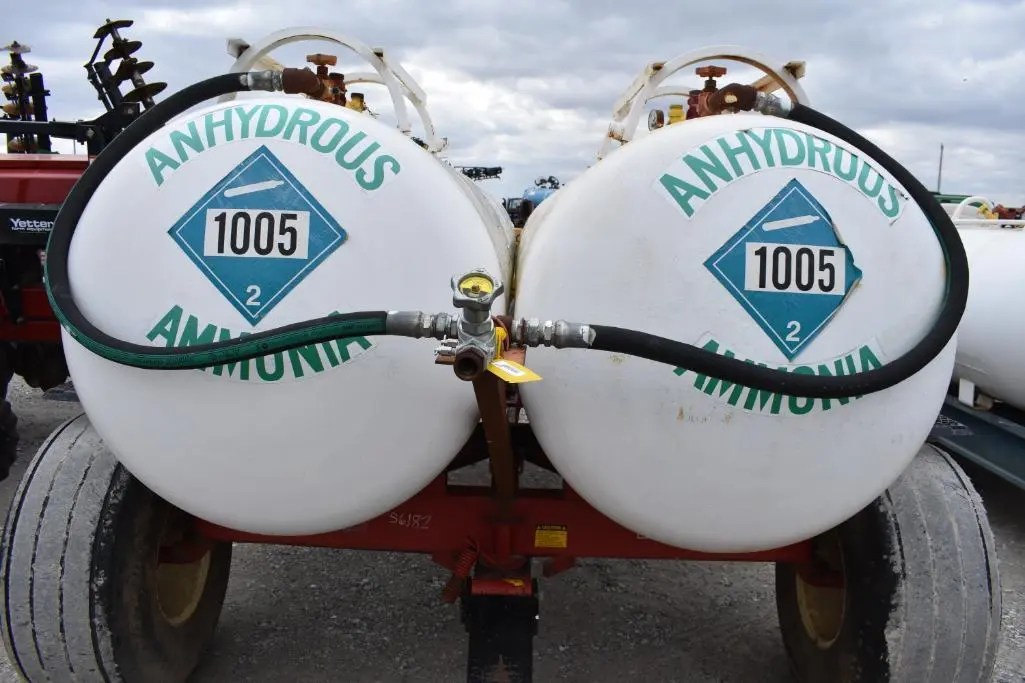

Double 1000 gal NH3 nurse tanks
NH3 Tanks from top manufacturers available

Browse a large selection of NH3 Tanks by popular models from top manufacturers.
Multiple ways to buy: Live auctions, online auctions, buy now or make offers.

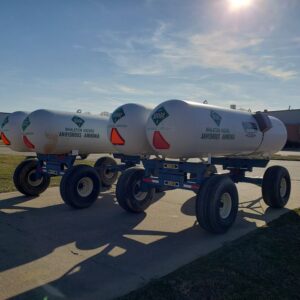

Anhydrous Tanks For Sale

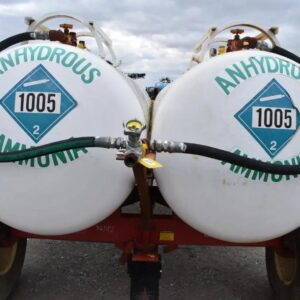

Nh3 Double Nurse Tanks, Double 1000 Gallon Nh3 Tanks, Plumbed With Single Load Line On Top Front, Data Tag, Duo Lift Running Gear With Pivot Pin Hitch, 16.5L-16.1 Tires, Rear Hitch, Adjustable Frame
General

Year  2022
Manufacturer  ARCOSA
Model   1000
Serial Number      M2223629
Condition      New
Stock Number       5M2223629
Description
Arcosa (Triarc) NH3 Twin 1,000 gallon NH3 nurse tank (Trinity), liquid out 1.5″, vapor 1.25″.

Dual 1000 Gallon Anhydrous Tanks Mounted On 120″ Row Crop Center Running Gear, Tanks Are Trinity Brand, Top Draw, Tank Length 193 1/2″, 250PSI@125 Degrees Fahrenheit, Total Width Approx. 134″, Rinse Tank, Gauges, And Valves Intact, Rear Hitch, Cat Walk, 1 Spare Tire Included (Not Pictured), Tires: 15.00-16 Goodyear Aircraft Rib, Note: RF Tire Has Thin Spot In Middle.

AMMONIA STORAGE TANKS

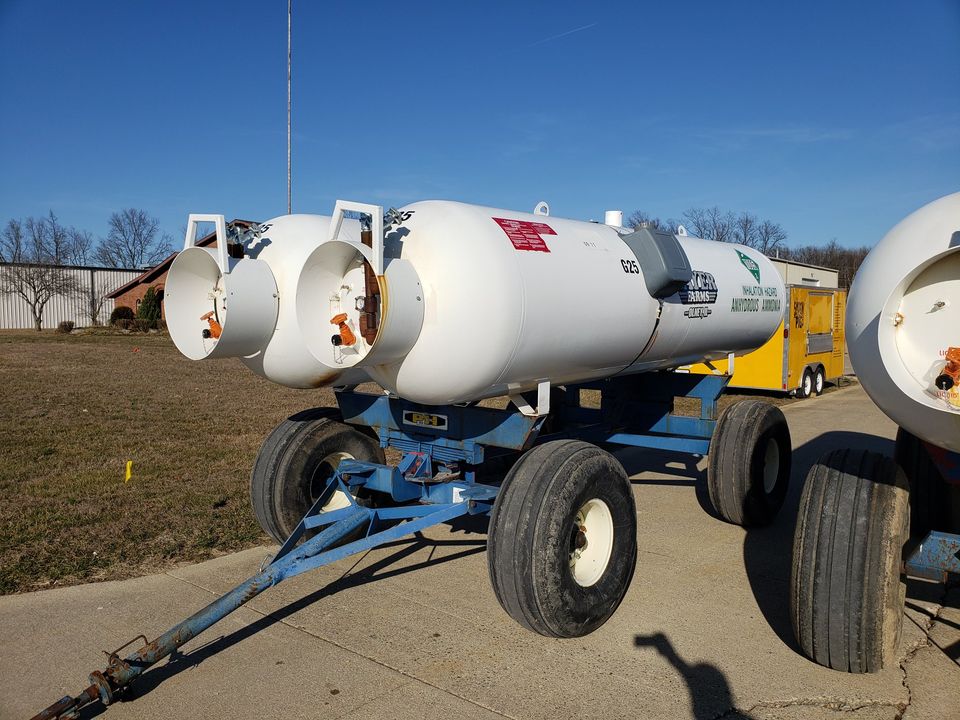

Double 1000 Gal NH3 Tanks For Sale

Buy polyethylene Ammonia Tanks for sale at the lowest prices online. Ammonia, also called Anhydrous Ammonia, NH3, and Azane, is used most as concentrated fertilizer in agricultural crop operations but is also widely used for various other agriculture, industrial, and commercial applications. Ammonia storage is recommended in HDPE / XLPE vertical chemical tanks, cone bottom tanks, and double wall tanks, with specific gravity 1.5 or greater, and installed with PP / 316 SS fittings, EPDM gaskets, and Hastelloy / Titanium bolts.

AMMONIA TANKS FOR SALE

Anhydrous Ammonia Tanks

Buy Twin 1000 Gallon Nh3 Tanks Online

Quality Tested, Made in the U.S.A. Anhydrous Ammonia Tanks

Quality Steel Anhydrous Ammonia (NH3) Tanks are manufactured in the heart of the Midwest in our strategically placed Fremont, Ohio location. Our tanks are rigorously tested and expertly manufactured to ensure ASME guidelines are met.

Equipped with an experienced sales force and customer support team, Quality Steel makes sure all Anhydrous Ammonia Tanks are built, shipped, and delivered on time. Once delivered to the customer, our tanks include a 3-year limited warranty.

Looking for a propane tank? We can help . To quickly find a propane tank get a Quote Now

ASME STORAGE TANKS FOR ANHYDROUS AMMONIA

NEW & USED NH3 STORAGE TANK INVENTORY
Long Beach Off-coast Depot is a leading supplier of new and used ASME storage and process vessels, with special expertise in the storage of Anhydrous Ammonia (NH3) and other liquids.
We have one of the largest inventories of new and used ASME storage tanks in the country, available in standard sizes—ready-to-ship and available for immediate delivery.
While frequently used as a fertilizer in agricultural operations, NH3 is also commonly utilized in commercial and industrial applications, including chemical and petrochemical plants, pharmaceutical plants, paper mills, petroleum refineries, power stations, and utilities.
Long Beach Off-coast Depot highly qualified teams deliver the right solutions to the highest standards no matter which industry you serve.

Buy Twin 1000 Gallon Nh3 Tanks Online
CUSTOM NH3 STORAGE VESSEL MANUFACTURING
We also offer custom-fabricated ASME pressure vessels for the storage of NH3 in sizes up to 120,000 gallons and more, built to your exact specifications.  All vessels are fully designed, fabricated, and manufactured at our state-of-the-art, 125,000-square-foot, Texas-based fabrication facility.
Operating within strict conformance of HSE guidelines—all our custom fabricated NH3 storage tanks are manufactured to the highest standards and certified in accordance with ASME Boiler and Pressure Vessel Code, Section VIII, Division I, II & III.

OPTIONS & EQUIPMENT
We also offer the most comprehensive array of related equipment including NH3 pumps, compressors, valving, liquids transfer and metering systems, vaporizers, blending systems and much more. If you can’t find the tank or equipment you are searching for, we will find it for you – and deliver it at a competitive price.

PERFORMANCE UNDER PRESSURE
Buy Twin 1000 Gallon Nh3 Tanks Online
NH3 storage vessels are regulated by the United States Department of Labor and must conform with OSHA part number 29CFR1910.111. [check]. Our NH3 storage tanks meet all applicable federal, state and local codes and standards including part 29 CFR1910.111 as well as ASME Section VIII, Div 1.
With decades of experience in the storage and handling of gases and liquids under pressure, you can rest assured our NH3 storage vessels meet or exceed all industry standards to ensure the highest level of safety and deliver time-tested performance.
DELIVERY & INSTALLATION
Save time – and headaches!  Let us handle all the details of preparing, loading, shipping, and installing all your tanks and equipment for you—or your complete NH3 bulk storage plant or terminal. Backed by over six decades of experience, our field service professionals will complete your installation efficiently and economically—to the highest safety standards.
We pride ourselves on delivering unsurpassed flexibility in meeting our customers’ NH3 storage needs! get a Quote Now
Buy Double 1000 Gallon Nh3 Tanks Online

Double Propane or Anhydrous Ammonia (NH3)

BULK STORAGE

Long Beach Off-coast Depot handles bulk storage solutions designed for storing Anhydrous Ammonia (NH3) or Propane. You’ll find quick lead times and custom sizes because we manufacture our tanks and skids in-house.
Each tank is engineered in compliance with the latest state and federal regulations. Our certified welders ensure your tank is manufactured to code with strength and quality at the forefront.

Buy Double 1000 Gallon Nh3 Tanks Online
Double Bulk Plant Design

Safety and efficiency are important when designing and configuring your Anyhydrous Ammonia (NH3) or Propane Bulk Plant. Westmor’s in-house design engineers will ensure you have the proper flow rates while retaining a safe working environment for your crews.

Pressure vessels are x-rayed to ensure welds are strong and reliable, avoiding premature failures
Tanks are engineered and manufactured in compliance with the latest state and federal regulations
Manufacturing facilities allow for quick lead times

Many releases of ammonia occur when handling the nurse tank. Knowledge of the tank will enable responders to control these releases in a quick and safe manner.

Nurse tanks are used to transport anhydrous ammonia as a liquid under pressure from the dealer to the field.
Tanks are most often either 1,000 or 1,500 gallons in size although 2000 gallon nurse tanks may be seen.
A full 1,000 gallon tank will weigh 7,500 pounds and a full 1,500 gallon tank will weigh about 10,600 pounds.
Nurse tanks are considered full when at 85% of capacity.
Two 1,000 gallon tanks may be mounted on the same running gear.

All components in contact with ammonia will be constructed of black, mild steel or stainless steel, but never galvanized metals (brass, copper, etc.). All valves and gauges will be located on the top of the nurse tank and toward the front except for the pressure relief valve. The valves and gauges will be protected by a roll cage or some other means. A hydrostatic relief valve will be present anywhere in the plumbing system where ammonia liquid or vapor is trapped and needs to be safely removed.

A slow moving vehicle (SMV) triangle will be attached at the rear of the nurse tank. Safety chains will be used when hooking up. Only one nurse tank unit may be towed full down the road but two units may be towed if each is empty.
There are no pumps on a nurse tank. Liquid flows through an ammonia rated hose to the application toolbar by internal tank pressure. Tanks are painted white or a light color to reflect sunlight keeping the tank shell from heating up. All tanks will have an accessible supply of water for first aid purposes.

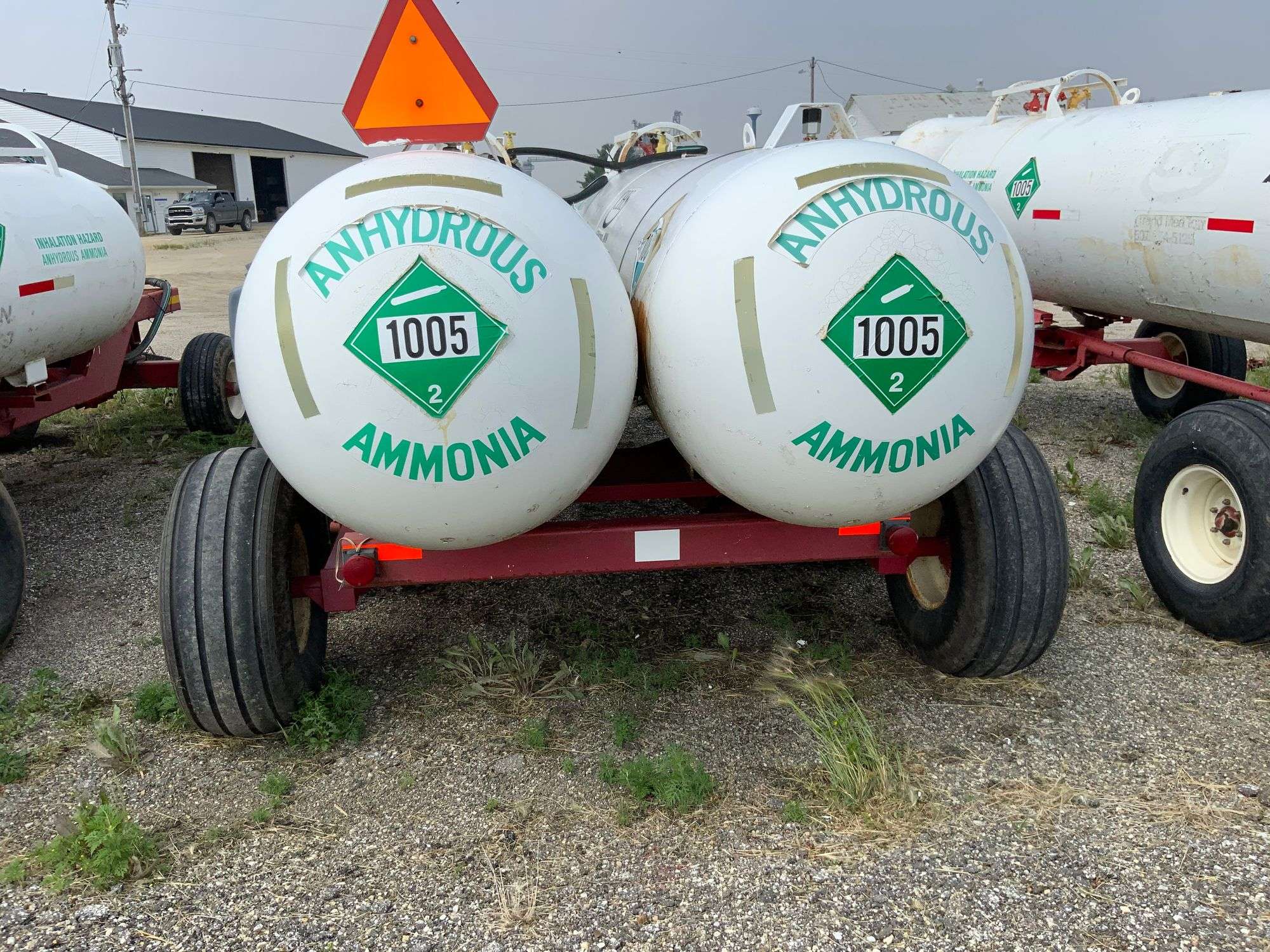

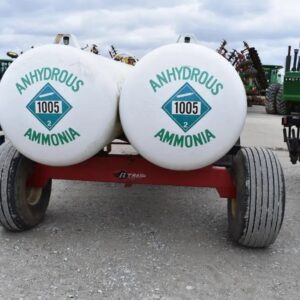

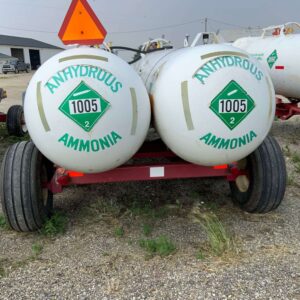

Nurse Tank Markings
The TDG (Transportation of Dangerous Goods Act) rates anhydrous ammonia as a CLASS 2, Division 2.2 non-flammable, compressed gas. The diamond shaped Department of Transportation pictogram consists of a gas cylinder silhouette above the United Nations identification number 1005 on a green background.

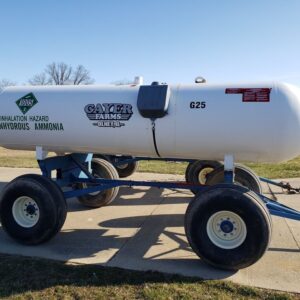

The sides of the bulk tank must also have “Inhalation Hazard” printed in bold letters. For more information on Minnesota labeling and marking requirements see Tank Marking and Placarding Requirements (PDF).

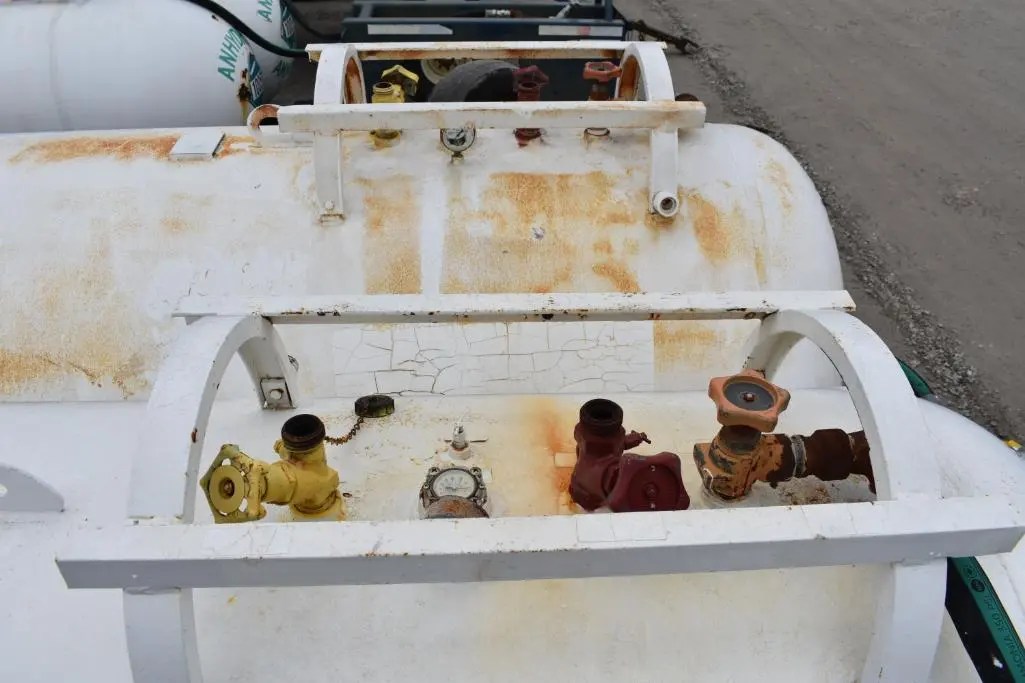

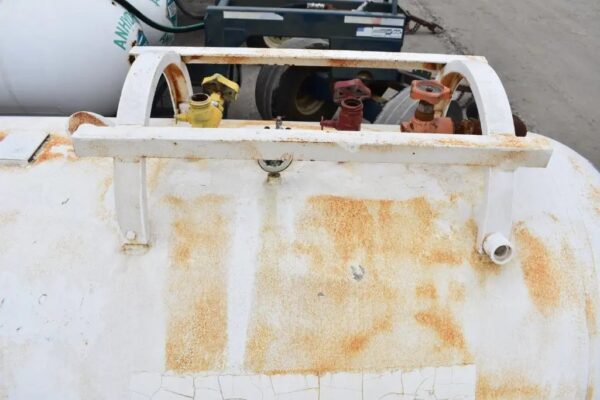

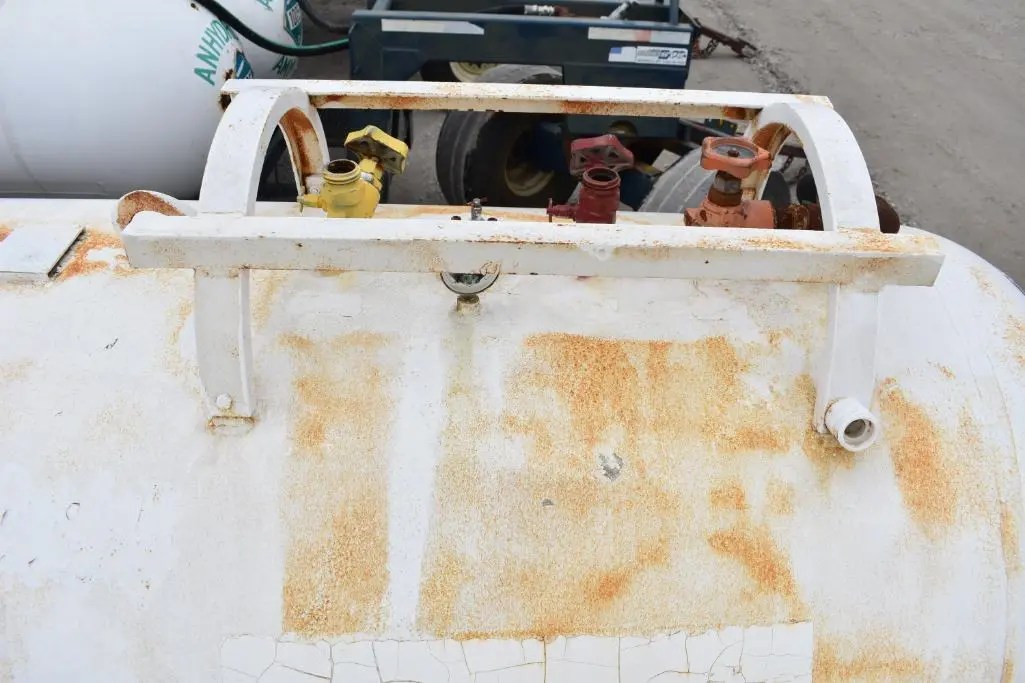

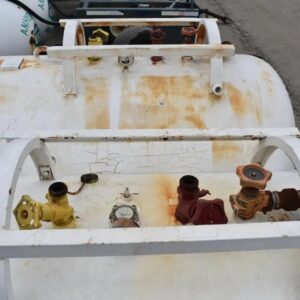

Nurse Tank Anatomy

Liquid Withdrawal Valve
Liquid Fill Valve
Pressure Gauge
Fixed Liquid Level Gauge
Vapor Return Valve
Magnetic Float Gauge
Pressure Relief Valve

Liquid Withdrawal Valve (#1 in diagram)

This valve is always positioned at the front of the nurse tank. A dip tube extends from the valve into the tank to the bottom. Internal tank pressure causes liquid to be withdrawn up through the dip tube, through the valve and into an ammonia rated hose to the field application toolbar. Most but not all liquid valves are painted red or orange.
The withdrawal valve contains an internal valve that will safely close when liquid flows out of the tank too quickly. This “excess flow valve” will shut cutting off the flow of ammonia when, for example, a hose ruptures or the withdrawal valve shears off. The excess flow valve will not open again until the withdrawal valve has been closed which allows pressure to equalize on both sides of the excess flow valve seat.
If a nurse tank is tipped on its side, the dip tube will access the vapor space and can not be used to withdrawal liquid ammonia.
Liquid Fill and Vapor Return Valves (#2 and #5 in diagram)

Both the liquid fill and vapor return valves are used to fill a nurse tank from bulk storage. As liquid ammonia is transferred into the nurse tank through the liquid fill valve, vapor moves into the bulk storage tank through the vapor return valve which equalizes the pressures of both tanks.
The liquid fill valve is usually painted red or orange while the vapor return valve will be painted a lighter color typically yellow. Normally they will be installed close together to allow workers quick access to both when filling. The threaded part of the valve will be facing up and have a raincap.
Both the liquid fill valve and the vapor return valve will have an internal excess flow valve that will shut in the event of hose rupture or valve failure during filling.
The liquid fill and vapor return valves do not access the bottom of the tank and therefore cannot be used to off-load an up-righted nurse tank because they access the vapor space only. When the nurse tank is on its side these valves will access liquid and may be used unless the excess flow valves close.
Pressure Gauge (#3 in diagram)

Nurse tanks will have a pressure gauge that reads from 0 to 400 pounds per square inch or psi. Internal tank pressure is affected by ammonia temperature and quantity in tank. Pressures can be as high as 200 psi when liquid ammonia reaches 100°F. (See “Chemical and Physical Properties”)
Fixed Liquid Level Gauge and Magnetic Float Gauge (#4 and #6 in diagram)

The fixed liquid level gauge is the small bleeder valve shown at the top of the photo. The gauge has a dip tube that reaches down into the tank to a liquid level of 85%. When opened, vapor will be seen until the liquid level reaches 85% of tank capacity then a small spurt of ammonia liquid will be visible.
The magnetic float gauge (bottom of photo) is a visual indicator of how full the tank is. The gauge reads in percent. Again, nurse tanks should never be filled to greater than 85% full. This allows space in the tank for vapor expansion.
The float gauge will only work on an up-righted nurse tank. Therefore, do not rely upon this gauge when establishing the potential hazard of a release from an overturned nurse tank.
Pressure Relief Valve (#7 in diagram)
To safe guard the integrity of the nurse tank each tank is equipped with a pressure relief valve. This valve accesses the vapor space above the liquid in the tank. If internal tank pressure exceeds 250 psi, the valve will open allowing vapor to escape. This reduces the internal pressure of the tank. Once the pressure drops below 250 the valve will close and the vapor release will stop.

Usually there is some sort of protection around the pressure relief valve. The picture shows a pressure relief valve protected by a metal ring welded to the tank. These valves will have a rain cap to protect it from corrosion.
If a nurse tank is filled to 85% or greater during a cool evening and allowed to warm up during the daytime hours, the pressure within the tank can exceed 250 psi resulting in pressure relief valves opening releasing vapor to reduce tank pressure. This is a normal process. After the pressure decreases to less than 250 psi the valves will close.
Unfortunately, it is not uncommon for valves not to reseat and continue to expel ammonia vapors. In such cases, the nurse tank will need to be offloaded and then the valve can be safely replaced.
