Buy Utility 3000r Reefer Trailer Online Thermo King® 53 FT Refrigerated Trailers For Sale With New Precedent® System

Buy Utility 3000r Reefer Trailer Online

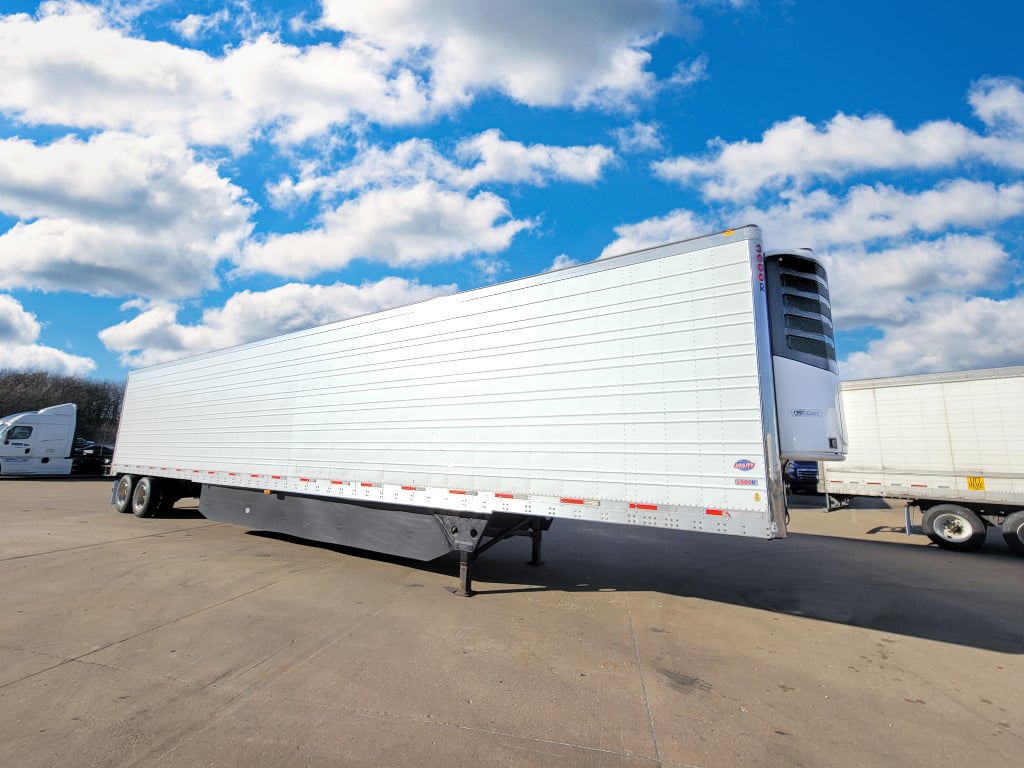

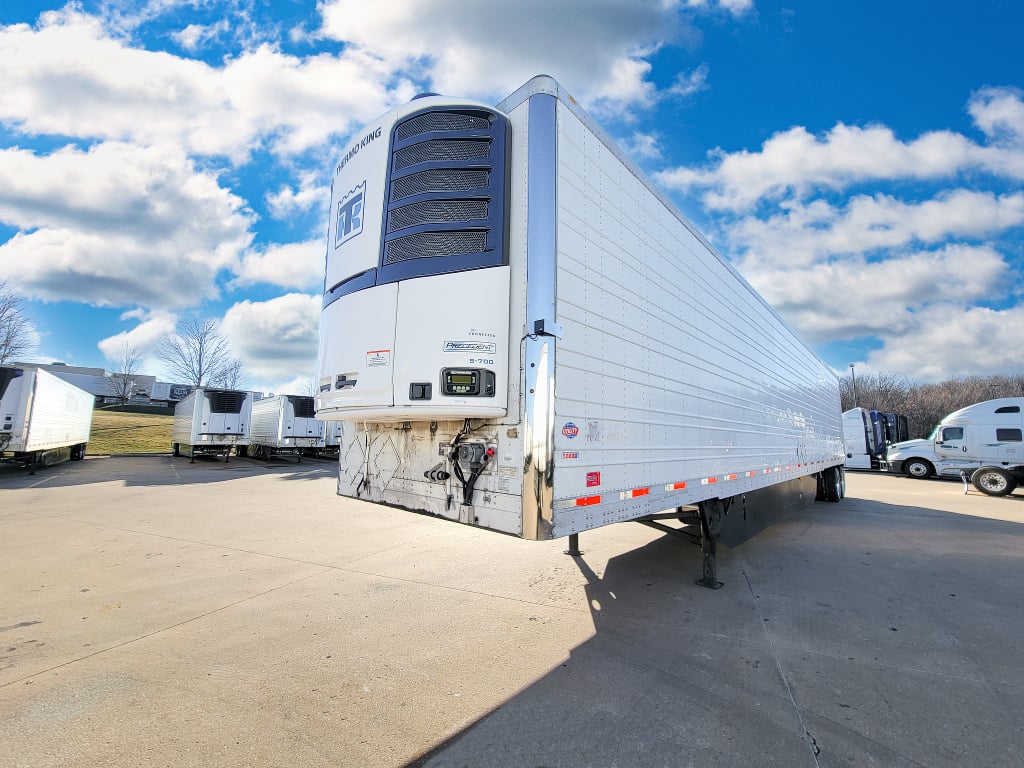

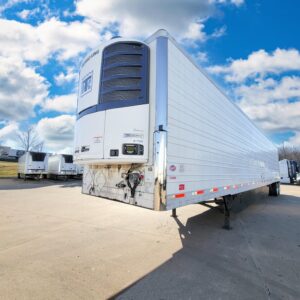

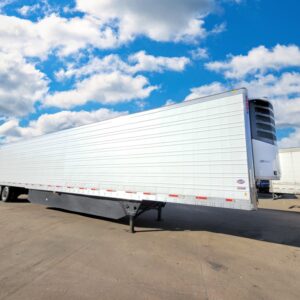

 UTILITY 53 FT X 102″  FOR SALE – THE UNITED STATES

When you consider the lower tare weight and greater payloads of Utility’s 3000R®, it’s easy to see how it became America’s top selling reefer. You’ll find features that exceed industry standards including: highest rated floors with 16,000 lb. capacity, built in thermal breaks, stainless steel rear door frame, and our patented Barrier Door®. You can also customize your reefer with any number of options to ensure that you get exactly the trailer your company requires.

The 3000R remains the #1 selling refrigerated van in North America because Utility’s philosophy of continuous improvement ensures optimized thermal efficiency and maximized performance.

Reefer Key Features

Use your mouse to swipe left or right to rotate 360° and view reefer key features.

Bendix® TABS-8 advanced with trailer roll stability program

Trailer roll stability technology improves trailer safety. It combines anti-lock braking (ABS) with a set of trailer sensors that monitor stability and automatically trigger braking intervention when detecting conditions that may lead to trailer rollover.
LEARN MORE

Reefer Safety Features

Bendix® TABS-8 advanced with trailer roll stability program

Trailer roll stability technology improves trailer safety. It combines anti-lock braking (ABS) with a set of trailer sensors that monitor stability and automatically trigger braking intervention when detecting conditions that may lead to trailer rollover.
D.O.T. rated I.C.C. bumper

Reefer Safety Options

Side Impact Guard (SIG)

Side Underride Test

Anti-dock walk devices and dump valves

Shore power plug at rear

Tire inflation systems

Grab handles

Side and rear steps

Verta-Lock® vertical shoring system

Air disc brakes

Reefer Performance Features

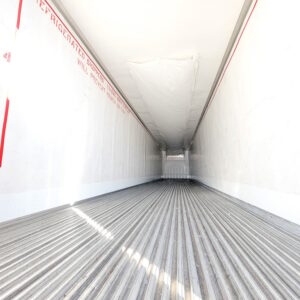

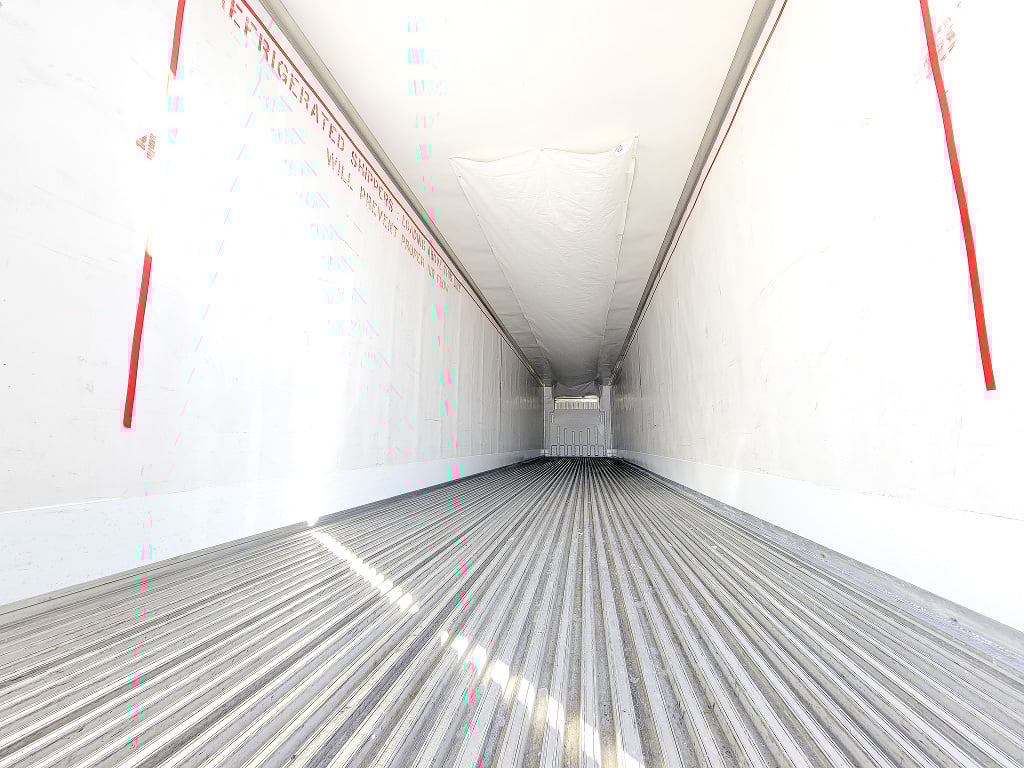

20K aluminum duct floor system

1½” extruded aluminum 20,000 lb high wear duct floor system features 12″ centerline crossmembers with full width hardwood fillers from sustainable sources and integral 10″ heavy-duty extruded aluminum non-tapered wearband.

Utility-designed rear Barrier Door®

.065″ Versitex®-Utility VR2 lining

Integrated heavy-duty 10″ high wearband

100% LED lighting

Support leg bracing

100% soldered main harness

5½” deep extruded aluminum crossmembers

Michelin® Energy Guard Aerodynamic Mudflap

Reefer Performance Options

Cargobull ultra-low emission Transport Refrigeration Unit (TRU)

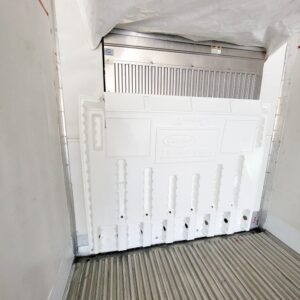

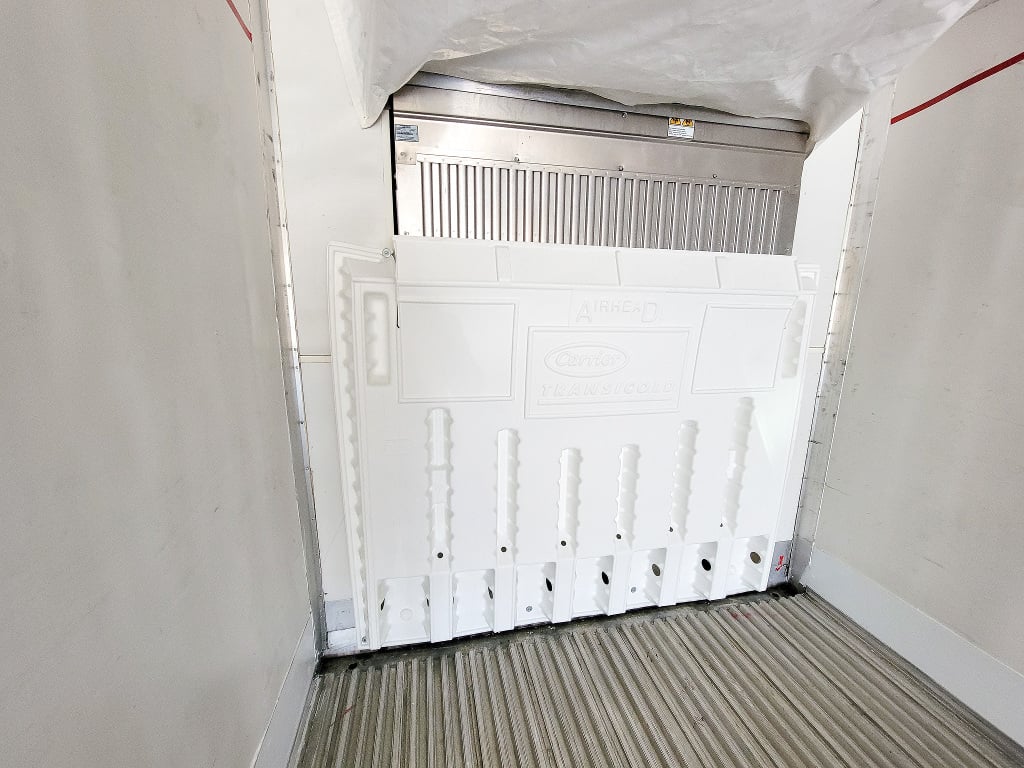

Air return bulkheads

Bottom rail protectors

Recessed logistic track

Clearance light packages

Electrical system options

Severe service high impact linings

Factory-installed rear & side door lift gates

Temperature management systems

Custom positioned side doors

Remote magnetic shut-off switches

Remote evaporators

Roll up door installation

Reefer Durability Features

Corrosion protection

A kingpin section fully immersed in rust preventative coating, a stainless steel rear case and barrier tape between dissimilar metals reduces the potential for corrosion.

Impact-absorbing rear gusset

ConMet Preset Plus® premium wheel end system

Stainless steel rear door frame

Unique tensioned roof design

Heavy-duty kingpin section

Stainless steel covered extruded aluminum corner posts

5⁄16” thick dock board guide plates

Ultra Road Shield™ Plus (URS+)

Reefer Durability Options

Stainless steel I.C.C. bumper

Stainless steel wingplates

Custom wearbands

Stainless steel electropolished lock rods

Stainless steel side skin

Front corner protectors

Severe service kingpin section

Exterior rub rails

LED dome lights

Reefer Efficiency Features

Thermal barriers

Low conduction barrier between threshold and buckplate reduces heat transfer, optimizing thermal efficiency and lowering reefer unit operating costs.

Hendrickson® ULTRAA-K™ 40K air ride suspension & slider system

Diagonal reinforcing gussets on slider rails

Foam mandrel with foam-in-place insulation

Lining corner closures

Energy efficient foam insulation using low-GWP Solstice® Blowing Agent

Reefer Efficiency Options

Utility Aerodynamic Tail 2 (UAT2)

Customized floor systems

Factory-installed refrigeration units and accessories

Pintle hooks/doubles

Diamond pattern stainless steel door skin

Electric stand-by refrigeration units

Factory-installed decals

Tri-fold rear doors

Walk ramps from major suppliers

Multi-Temp load partition systems

Multiple strip curtain configurations

CenterSeal® load partition device

Retractable platforms and stairs

Specifications, data, availability and images are subject to change without notice.

New And Used UTILITY 3000-R Refrigerated Van Trailer For Sale

3000R Specs

ABS
Bendix® TABS-6 2S/1M ABS System With SR-5 Spring Brake Valve

Cross Member Floor Fillers
Full Length Hardwood Floor Fillers

Cross Members Legs to Rear Subframe
5-1/2″ Aluminum I-Beam Cross members with 4 Rivet End Clips on 12″ Center Line

Cross Members over Rear Subframe
4″ Steel I-Beam Cross members with 4 Rivet End Clips on 12″ Center Line

Floor Thickness
3″ Floor

Floor Type
1-3/8″ Heavy-Duty Extruded Aluminum Duct Floor with Integral 10″ Heavy-Duty Extruded Aluminum Non-Tapered Wearband. Fork Lift Reinforcing is for a 16,000 Load on the Front Axle of the Fork Truck

Floor Underskin
.040″ Versitex

Fork Lift Reinforcing
Bearing Grid System at Rear with Full Length Hardwood Fillers & Aluminum I-Cores Rear 36″ of Floor in Center 68″. 1 Additional Cross member at Rear for Maximum 6″ Center Line at Rear 34″

Front Corner Post
.080″ Extruded Aluminum 4-3/4″ Radius Front Corner Post

Front Corner Post Inserts
Stainless Steel Front Corner Post Inserts

Front Wall Lining
.065″ Versitex

Front Wall Thickness
4″ Front Wall

Hendrickson Air Ride Systems with Integral Axes
Hendrickson® ULTRAA-K Air Ride/Slider System

Hub Piloted System with Outboard Drums
Outboard Cast Drums for 16-1/2″ × 7″ Brakes

Insulation Type
Polyurethane Insulation Foam-In-Place

Length
53′ 0″ Overall Length

Lower Clearance Lights
Grote® Micronova® LED PC-Rated Light

Main Harness
Utility Moisture Resistant Harness with Internal Ground and 7-Way Plug

Oil Seals
National® 5 Star Oil Seal for 5-year Warranty

Overall Height
13′ 6″ Overall Height on 46-1/2″ 5th Height

Rear Case & Buckplate Material
Stainless Steel Rear Door Case for Satin Finish Swing Doors

Rear Door Hinges
4 Hinges per Door

Rear Door Lock Rods
1 Lock Rod per Door

Rear Door Thickness
3″ Rear Doors

Rear Door Type
Utility Design Barrier Door®

Rear Header Clearance Lights
Grote Micronova LED Grommet-Mounted Rear Header Identification/Clearance Light

Rear Subframe Finish
Black Scharpf

Roof Lining
.065″ Versitex-Utility VR2U Lining

Roof Thickness
3″ Roof

Rubber Dock Bumpers
1 Pair Rubber Dock Bumpers

Side Panels
.040″ Aluminum Flat Side Panels

Side Posts
1″ J-Shape Extruded Aluminum Side Posts with 16″ Maximum Center Line from Front to Rear of Support Legs with 24″ Center Line Legs to Rear 2 Additional Posts each side over Front Subframe

Side Wall Lining
.065″ Versitex-Utility VR2U Lining

Side Wall Thickness
2″ Side Wall

Slider Pin Release Mechanism
Hendrickson Quik-Draw® Air-Operated Slider Repositioning System

Slider Suspension Location
70″ Rear and 166″ Forward Suspension Location for 96″ of Slider Travel

Stop/Tail/Turn Light Configuration
Grote 4″ LED Stop/Tail/Turn Lights

Support Leg Finish
Black Scharpf

Wearband
10″ High 3/16″ Thick Heavy-Duty Extruded Aluminum Non-Tapered Integral Wearband with Floor

Used Refrigerated Semi-Trailers for Sale
When your business needs to keep products at the right temperature, a well-maintained Utility’s 3000R Refrigerated Trailer is of vital importance. Our inventory includes new and used Utility’s 3000R Refrigerated Trailer for sale from top brand Thermo King. We also have a variety of refrigerated unit brands like Carrier and Thermo King that will help you get the job done.
New And Used UTILITY 3000-R Reefer Trailer For Sale
Most of our Utility’s 3000R Refrigerated Trailer feature a lightweight spec and some of the latest technology in the market including high efficient BTU output reefer units, tire inflation systems, load scales, fuel efficiency skirts, air ride and slide suspension, an aluminum build, and tandem axles.
New And Used UTILITY 3000-R Reefer Van Trailer For Sale
All of the new & used Utility’s 3000R Refrigerated Trailer in our fleet are inspected and maintained by Prime. As a result, you can be sure that you’re getting a high-quality trailer that can get the job done.

EQUIPPED WITH:

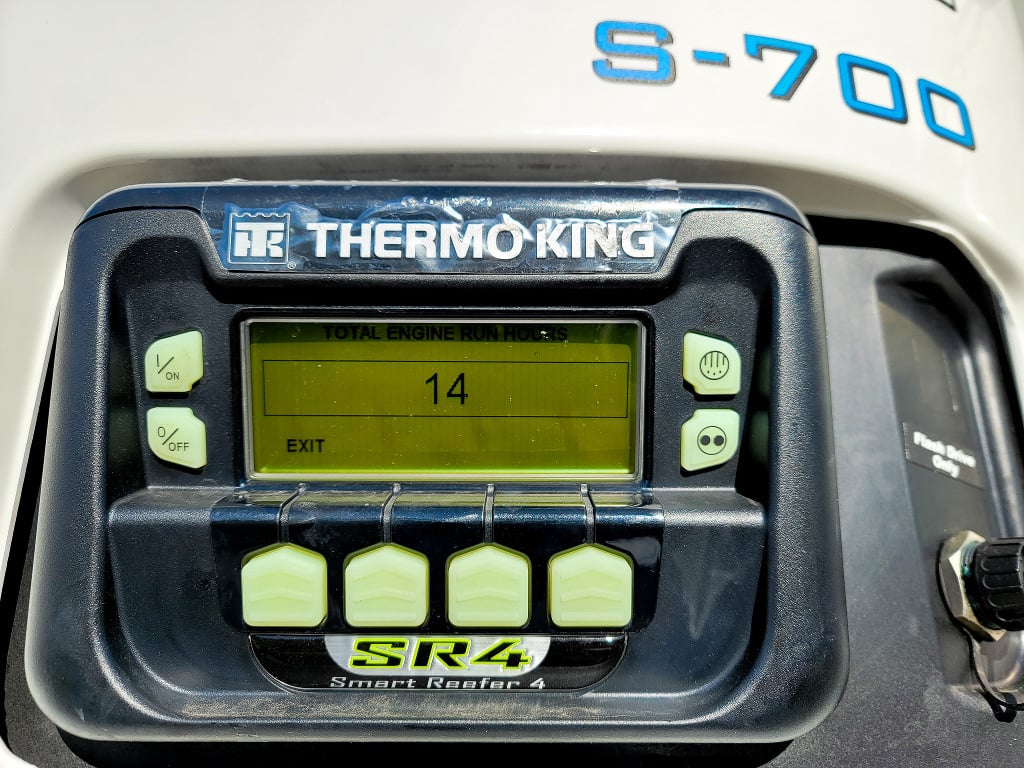

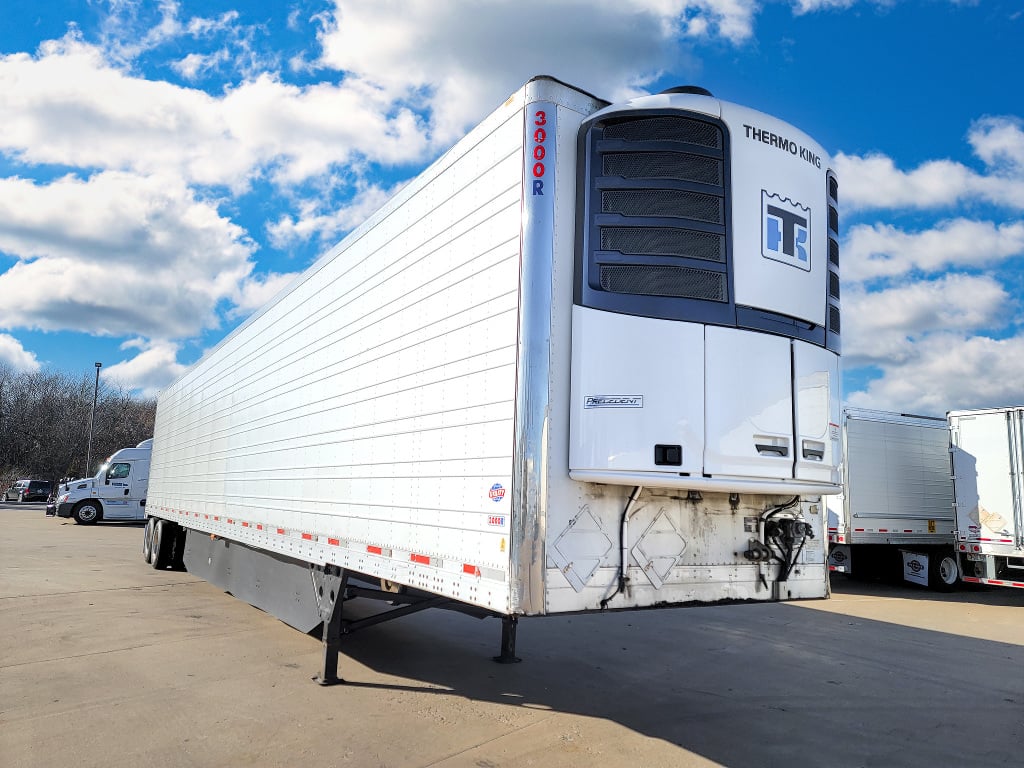

* BRAND NEW Thermoking Precedent line S-700 or s-600
* DUAL TIRES
* Bendix Disc Brakes
– Hendrickson AIR RIDE Suspension
* Air Ride – Air Slide
* Right Weigh Load Scale Gauge
* Fuel Saving Skirts
* Bendix Eversure 3030 Air Brake System
* TABS-6 Advanced ABS with Roll Stability
* Hendrickson Vented Axles
* Meritor PSI Tire Inflation with Thermalert
* Stainless Steel Corner Posts
* Hendrickson ULTRAA-K Slider System

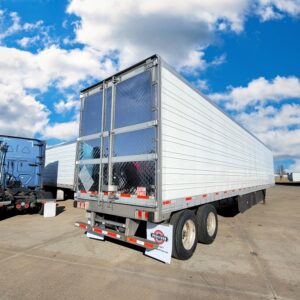

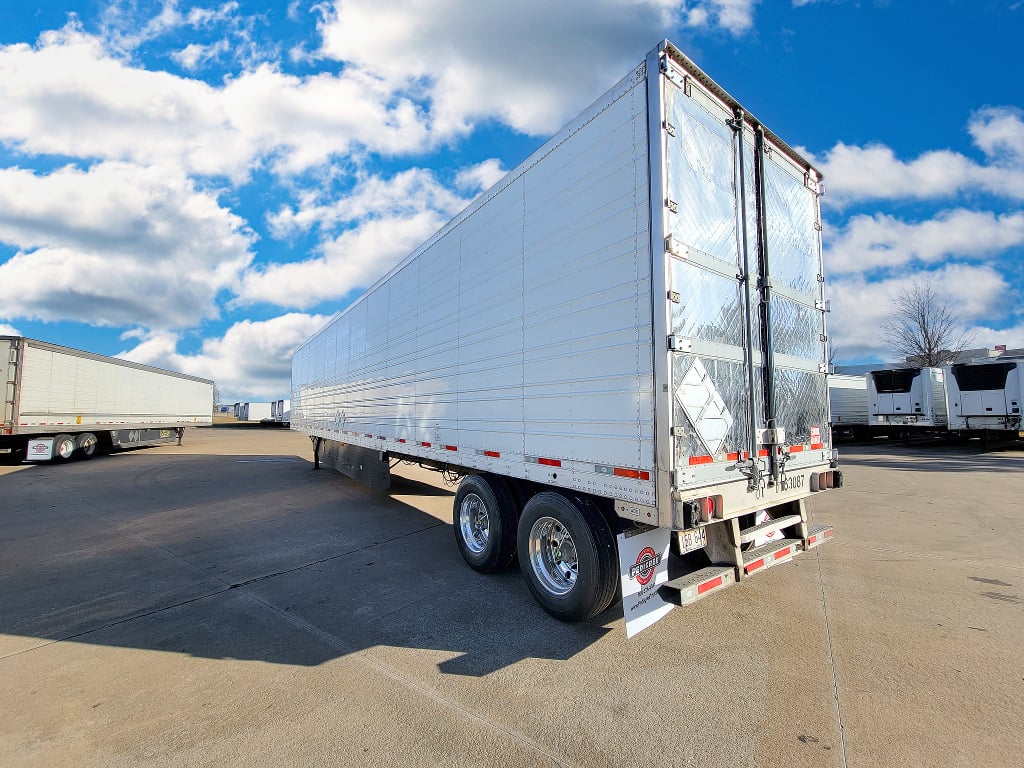

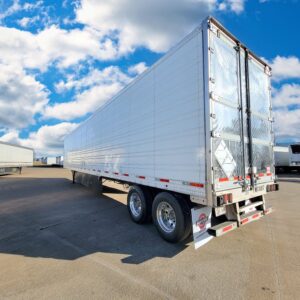

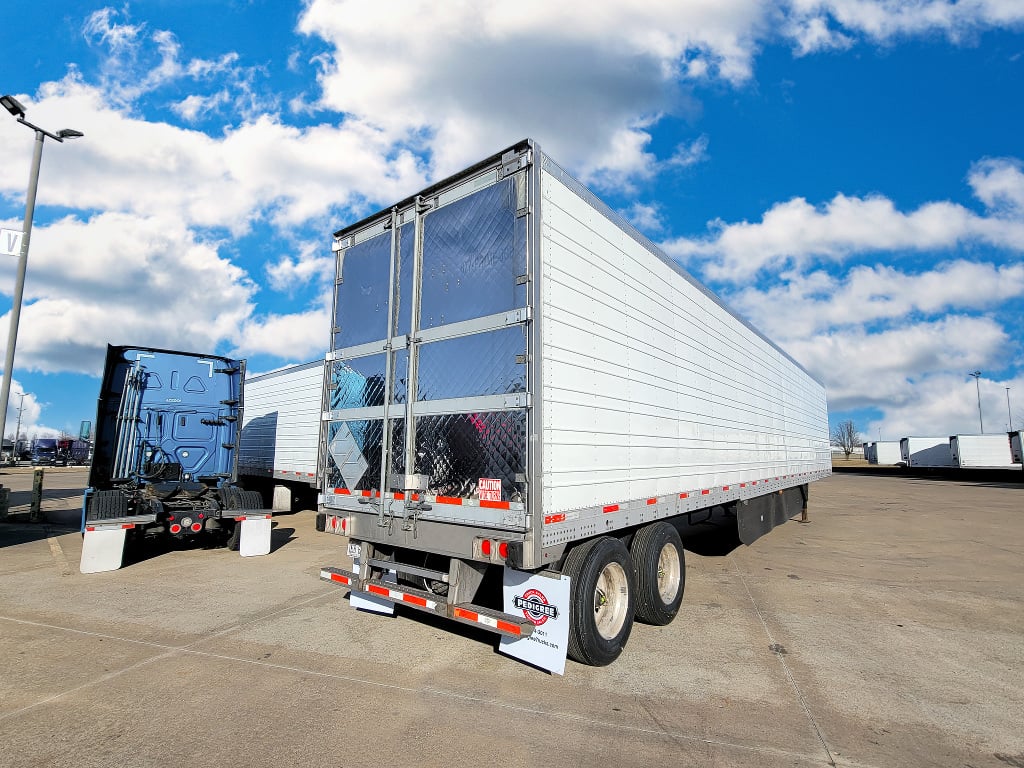

* Double Swing Stainless Steel Diamond Pattern Rear Doors
* Veritex Wall Lining
* Grote Supernova & Trucklite Series LED Lights
* Inspected, Fully Serviced & Fully Detailed

REEFER CONFIGURATIONS

The proven Utility 3000R and 3000R Multi-Temp refrigerated vans are the industry’s strong light weight high payload performers. The Utility 3000R can also be custom built with a variety of options to meet your operational requirements.

Built with the same industry-leading technologies of the 3000R, the Utility 3000R Multi-Temp reefer is customizable with a variety of options to meet your unique operational requirements.

The 3000R remains the #1 selling refrigerated van in North America because Utility’s philosophy of continuous improvement ensures optimized thermal efficiency and maximized performance.
3000-R For Sale – Utility Reefer/Refrigerated Vans
