Magnetic Drive MAXP Series Pumps ANSI B73.3 Standards For Sale

Magnetic Drive MAXP Series Pumps For Sale

MAXP Series Pumps

Magnatex MAXP Series ANSI Sealless Mag-Drive Pumps

MAXP Series Mag Drive Pumps

Max Flow: 2000 GPM
Max Head: 470 ft
Max Power: 200 HP
Working Pressure: 285 psig
Speed: 3550 rpm

 Magnatex® Pumps, Inc.XP Series Pumps are engineered for safe and superior performance in toxic, noxious, or corrosive applications where leakage to the atmosphere cannot be tolerated. These sealless, magnetically driven pumps are specifically designed to conform to all ANSI B73.1 dimensional standards in both liquid and drive end.
Magnatex® Pumps, Inc.XP Series Pumps are available in 17 pump sizes, 16 magnet sizes, and 9 different alloy materials of construction. With flow rates to 2000 gpm, heads to 470 feet and temperatures to 750° F, MAXP Pumps can handle a broad range of difficult applications.
Advanced design features include the following

Single static gasket construction which eliminates all O-rings in the process fluid
Heavy-walled containment and optional secondary containment
Anti-contact ribs which prevent breach of containment
Long-wearing silicon carbide bearings
Provisions for thermocouple/RTD and vibration equipment
Fully enclosed high-efficiency impellers requiring no shimming or assembly adjustment

Magnatex MAXP pumps have the following design features

Mag drive sealless pumps eliminate the need for expensive mechanical seals; eliminating costly shutdowns and repairs, which helps reduce “Reportable Release” issues.
No maintenance intensive mechanical seals required. No seal flush or complex and expensive seal pot systems to monitor or maintain.
Straddle-mounted inner magnet system with bearings on both sides of the magnet – this design reduces shaft and bearing loads when compared to our competitors overhung, cantilevered, inner magnet designs
Slip-fit construction, which allows easy on-site maintenance with no special tools or fixtures required
Large internal flow paths, which means the pumps can easily handle 1% solids @ 500µ and up to 8% solids @ 100µ. Optional baffle-plated rear casing enables enhanced solids handling capability. Optional proprietary self-cleaning strainer technology enables us to handle even higher solids percentages if necessary
Safely handles toxic, noxious, corrosive or high-temperature liquids with increased safety to personnel and the environment
Special high-temperature construction is available to handle up to 800°F
Options for leak detection are available that virtually eliminate any leakage to the environment when handling extremely hazardous chemicals
Suitable for use with edible hot oil fluids

PROCESS EQUIPMENT AND PRESSURE VESSELS
For the Petrochemical Industry

Pump Supplier to the WorldWe are a driving force in the global industrial pump marketplace. No other pump company in the world has the depth or breadth of expertise in the successful application of pre-engineered, engineered and special purpose pumps and systems.

Materials of Construction

304 SS
316 SS
Duplex Stainless Steel
Alloy 20
Alloy B&C

We develop a wide variety of static and process equipment for the petrochemical industry, providing solutions for reaction, filtering, vacuum drying and mixing, always following the most demanding quality standards that this industry requires.
Buy Magnetic Drive MAXP Series pumps
Experience In MotionHydrocarbon Processing PumpsRefining • Petrochemical Processing
MAGNATEX® MAXP Series Specifications

Maximum Flow
2000 GPM

Maximum Head
470 FT

Liquid Temperature
-150° F to 800° F

Maximum Power
up to 200 HP

Connections
150lb RF std. or opt. 300lb RF ANSI Flanges

Bearings
SiC, SiC-X opt. for Upset or Dry-run Conditions

Working Pressure
285 psig

Impeller
Enclosed

Speeds
Up to 3550 rpm

Magnets
Neodymium or Samarium Cobalt for High Temp

Motor
NEMA or IEC Frame Mounted

Secondary Containment
Optional

Steam Jackets
Optional

External Flush
Optional

Recirculated Flush & Vent
Optional

Vortex Breakers
Optional for Improved Solids Handling

Centerline Mounted
Optional

Supplier of Choice to the Hydrocarbon Processing IndustryWe offers the world’s most complete line of API 610 pumps with the widest range of hydraulic coverage, pressure and temperature capabilities. Its engineering expertise, applications know-how and installation experience are peerless. From 19th century lamp oil to the advent of the gasoline engine and the development of petrochemicals, Flowserve has proven itself to be the world leader in meeting the changing and demanding needs of hydrocarbon processing.
The petrochemical industry is responsible for the treatment and transformation of oil and natural gas. Petrochemical plants use specific chemical processes that enable the obtaining of a long list of derivative products that are used in the fertilizer, plastics, food, pharmaceutical, chemical and textile industries, among others.
Magnatex Pumps, Inc. was founded in 1985 in Houston, Texas by Dave Bullen who had previously founded Bullen Pump and Equipment in 1979. In 1985 the concept of using heavy duty magnetic drive, seal less pumps in the process industries was just starting to gain traction in the USA and around the world and Magnatex Pump was founded to fill the growing U.S. and global demand for these types of pumps. In 2007 we decided to focus 100% of our attention and financial resources on Magnatex so Bullen Pump and Equipment was sold to Puffer Sweiven in Houston. Today  tens of thousands of magnetic drive pumps installed in thousands of process plants and OEM packages all over the world.

Performance Curves

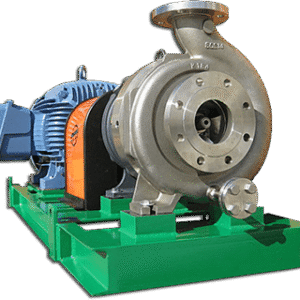

Buy Magnetic Drive MAXP Series pumps Online

Liquid hydrocarbons and gas account are the essential energy source relying on pumps at every stage of production and transport. Typically the pumps specified comply with ISO 13709 (API 610) together with additional stringent customer-specific specifications. Many applications require custom engineered solutions and extensive testing to provide the required performance. Another common feature of many key upstream applications is the requirement for large, high-energy machines, with designs of up to 27 MW having already been put into service.

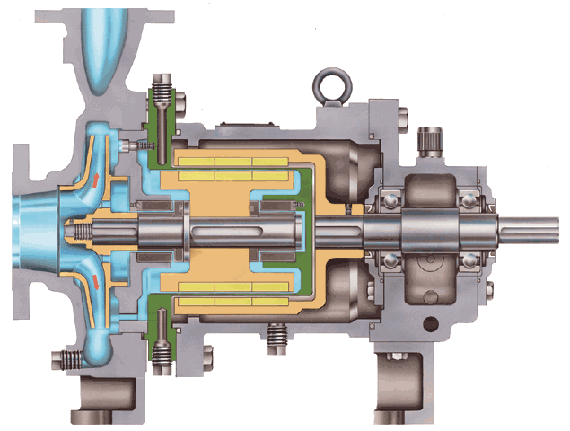

Cutaway

Dedicated to being a leader in the process pump industry by supplying

Rugged, reliable, field proven products
Most complete range of magnetic drive pumps available from any one source
Lowest total cost of ownership in the industry
100% external focus on customer service and customer requirements
Easiest and lowest cost of repair

Oil and Gas Industry
Pumps are necessary components of the oil and gas industry. Whether used during the upstream, midstream, or downstream phase, pumps give gas, oil, and other fluids enough energy to flow from one location to another. Centrifugal, oil, positive displacement, oil transfer, diaphragm, and petrochemical pumps are essential in delivering oil from the ground to a tanker, then to a refinery, and then on to storage.

Flowpath

Magnatex heavy-duty, state of the art, sealless, magnetic drive, stainless steel and alloy centrifugal and regenerative turbine pumps, Magnatex/Texel® fluoropolymer-lined, sealless, centrifugal pumps and Magnatex 3596 ANSI Mechanical Seal pumps are operating in thousands of applications worldwide, successfully meeting tough pumping challenges for both low and high temperature liquids, recovery solvents, heat transfer fluids, toxic liquids, acids, bases, noxious, toxic and expensive high purity fluids, etc.
Magnatex 3596 ANSI Series pumps are heavy-duty, rugged, world-class quality, ANSI process pumps manufactured to meet the latest ASME B73.1-2001 standard (revision of ASME B73.1M-1991). Pumps are manufactured in 29 sizes from a wide variety of materials, and offer seal options and seal flush systems to handle almost any application in the process industries.

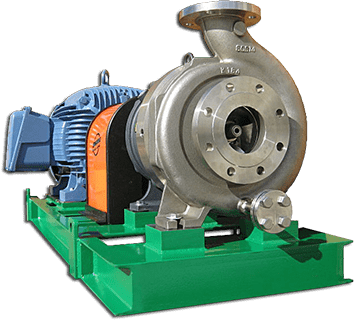

Magnetic Drive MAXP Series pumps

Pumps play a role in many applications in the oil and gas sector. Pumps are used for methanol injection, glycol pumping, chemical processing, gas sweetening, and water disposal. Pumps offer an efficient solution for transporting chemicals. Each type of pump integrated into a refining system for a specific purpose and are crucial in transporting or purifying different fluids.

Magnatex stainless steel and alloy MP/MPL, MPH, MPT and MMP close-coupled sealless, magnet drive pumps are designed to cost effectively handle low to medium flow, low to high head applications, utilizing standard C-Face motors. The efficient, simple design of Magnatex pumps allows for easy maintenance, requires no motor and baseplate alignment and reduces unscheduled downtime for a lower total cost of ownership than any of our competitors.
Magnatex rugged, long coupled, stainless steel and alloy MAXP Series magnetically driven, ANSI pumps are designed for safe, superior performance in toxic or corrosive services in high flow, high head applications. Magnatex MAXP series pumps conform to ANSI B73.3 standards and retrofit easily with existing ANSI mechanical seal pump installations or our competitor’s seal less ANSI pumps.

Pumping Applications in the Oil & Gas Industry

Because of the remote nature of many oilfields or pipeline pumping stations reliability and long service life are essential to the economic operation of the field or pipeline. As exploitation of an oilfield progresses, the pressure drops in the reservoir. Water injection pumps are used to maintain reservoir pressure and drive the oil to the producing wells. Injection wells are located all round the field and inject sea, brackish or produced water into the oil-bearing formation to boost the yield. Compared with the line losses, the delivery head is very high, so that the resistance curve is practically a straight line with slight inclination.
Magnatex/Texel pumps feature a compact, simple design for maximum efficiency and minimum downtime. Sealless, magnet drive Magnatex/Texel pumps feature fluoropolymer linings which are designed for superior performance in even the most corrosive pumping environments. The highperformance Magnatex/Texel MTA Series ANSI compatible pump features a high pressure transfer molded, mechanically bonded PFA lining that is thicker and more uniform than traditional rotomolded linings. In addition, it meets ANSI B73.3 standards for enhanced application compatibility. The ME/MER series pumps are designed for low flow, sub ANSI applications, with removable ETFE or PVDF liners with heavy duty cast iron casing armor for superior reliability and long service life.
Buy Magnetic Drive MAXP Series pumps Online

Magnatex All-Metallic Pumps
The all-metallic design of Magnatex sealless pumps ensures rugged, durable application performance when product leakage is not acceptable.
Texel Pumps
Compact, PFA-lined Texel MTA series pumps excel in the most corrosive pumping applications. These reliable pumps provide a lifetime of efficient, low maintenance operation at a low total cost of ownership.

Our Oil & Gas Pump Benefits

Provides an environmentally superior dredging method to meet strict water quality standards.
Very little turbidity or re-suspension of sediments at the suction head.
Capable of high production rates. Comparable to much larger conventional suction dredges.
Capable of passing large volumes of woody debris and other foreign material in sediments without clogging.
High slurry density minimizes the volume of effluent to be treated and disposed of upland deposition of sediments.
The capability of the technology to pump dense slurries long distances provides a pipeline alternative for transporting sediment to distant disposal sites.
Following solution of initial start-up problems, the prototype dredge proved capable of sustained reliable operation.
The discharge of sediment slurry into the water column resulted in low levels of turbidity and TSS, well within the limits of stringent water quality standards, without the use of a sediment containment curtain.

Meeting New Challenges
Magnatex and its worldwide partners recognize that unresolved pumping problems represent opportunities that drive innovation. Because of this, Magnatex retains staff with the real world experience and engineering capabilities that allow them to meet these challenges with new and innovative designs and products. Magnatex and its partners offer the capability to address application challenges well beyond the product range described on our website and welcome inquiries seeking solutions to custom pumping requirements.
Magnatex Services
Magnatex Pumps, Inc. delivers the service and support needed to ensure maximum performance for the life of your pumps. We offer sizing and selection support to help choose the right pump for each application. Magnatex offers spare parts, refurbish, rebuild/retest services and preventative maintenance programs needed to ensure maximum application performance and longevity of our products. We are dedicated to ensuring that you receive the optimum service life for your Magnatex® or Texel® sealless pump products.
Magnetic Drive MAXP Series pumps

Nationwide sales and technical services network
Start-up engineering assistance
On-site training for customers’ operation and maintenance personnel
Extensive multi million dollar pump and replacement parts inventory to ensure immediate response to customer needs – 24 hours a day/ 365 days a year

In difficult applications where leakage is not an option, superior design and service ensure that Magnatex pumps perform at peak levels with minimum maintenance and downtime for an extremely low overall cost of ownership. Magnatex sealless, mag-drive pumps are used extensively in the following process industries:

Chemical Process
Petrochemical
Refinery
Pharmaceutical
Textile
Food and Beverage
Power Generation
Semiconductor
General Industrial
OEM packages

Magnatex Pumps Capabilities
Proven Technology.
Superior design technology is what enables Magnatex and Magnatex/Texel® sealless, magnetically driven pumps to perform at peak levels in tens of thousands of demanding applications worldwide. Magnatex Pumps pumps are engineered to handle the rigorous challenges of low to high temperature liquids as well as the most corrosive, toxic and noxious applications without risking leakage into the environment.
Buy Magnetic Drive MAXP Series pumps

Our straddle mounted inner magnet ceramic bearing system is what sets Magnatex Pumps apart from our competitors. The straddle mounted bearing design significantly reduces bearing wear, lowers shaft loads and increases bearing life. Pictured is a comparison between the Magnatex straddle mounted design where the inner magnet assembly is supported by bearings on both sides of the magnet, and a typical overhung, cantilevered design common to almost all of our competitors. The solid red line indicates static shaft deflections. As you can see, the Magnatex design results in greatly decreased stress levels and bending moments on the shaft.
Magnatex and Texel pumps are designed for ease of maintenance utilizing slip-fit construction, without shims, special tools, heated bushing holders or extensive training requirements. Everything that Magnatex does is done to help lower the total cost of owning our pumps and to increase our customer’s process reliability and profitability.
